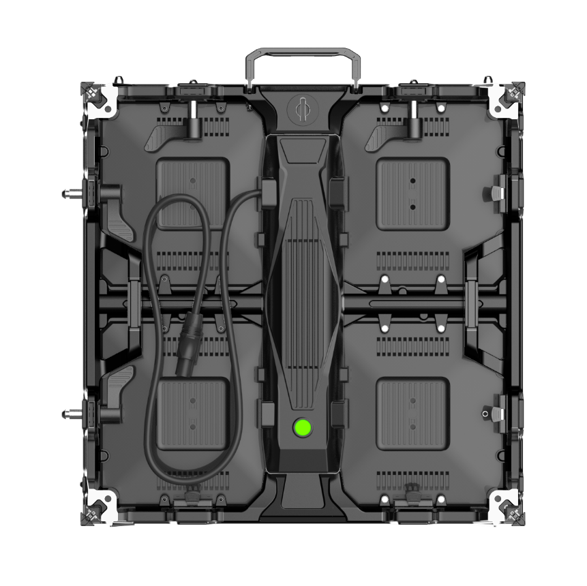

AR-pro Series

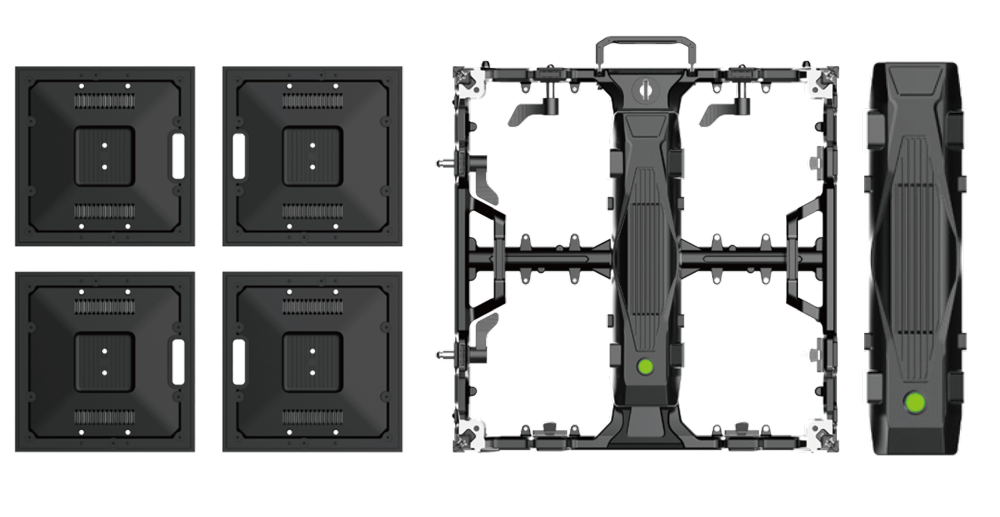

Integrated Design
The AR-pro series is a representative of simplicity and practicality, with every detail revealing its ultimate and practical personality.

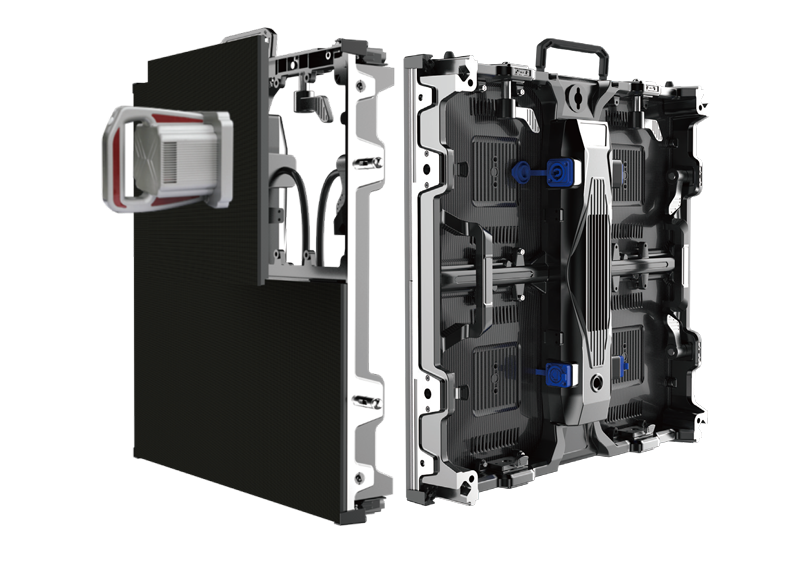

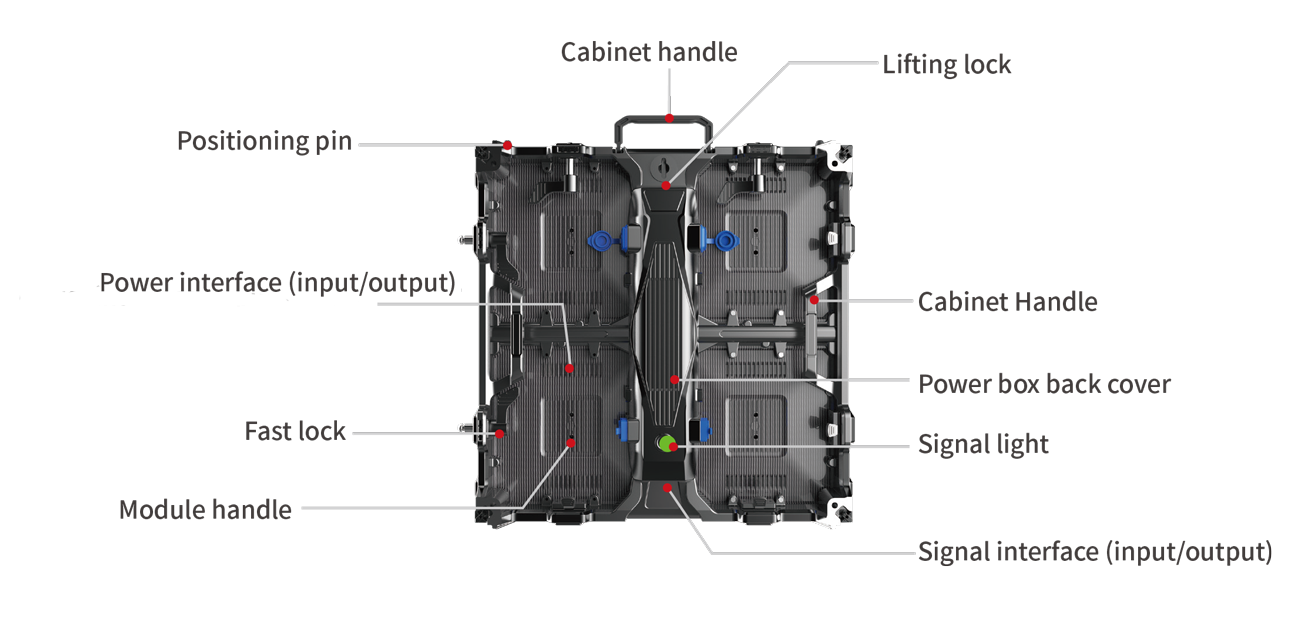

Maintain from behind
The Mars series supports post-maintenance, adapts to rapid maintenance in various installation environments, and improves operating efficiency.

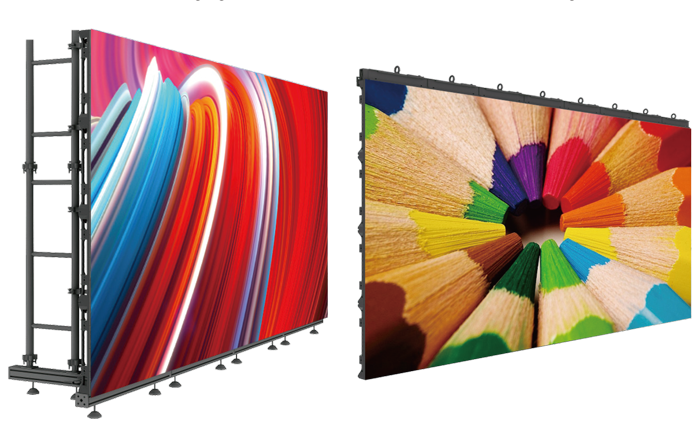

Support vertical
installation Maximum vertical height 10 meters
Support hoisting
Maximum lifting height 10 meters
Specifications
AR-pro Series
AR-pro 3.91 Outdoor
AR-pro 3.91 Indoor
AR-pro 2.97 Indoor
AR-pro 2.6 Indoor
AR-pro 1.95 Indoor
AR-pro 1.56 Indoor
Pixel Pitch
LED Type
Pixel Density
Brightness
Color Temperature
Scan

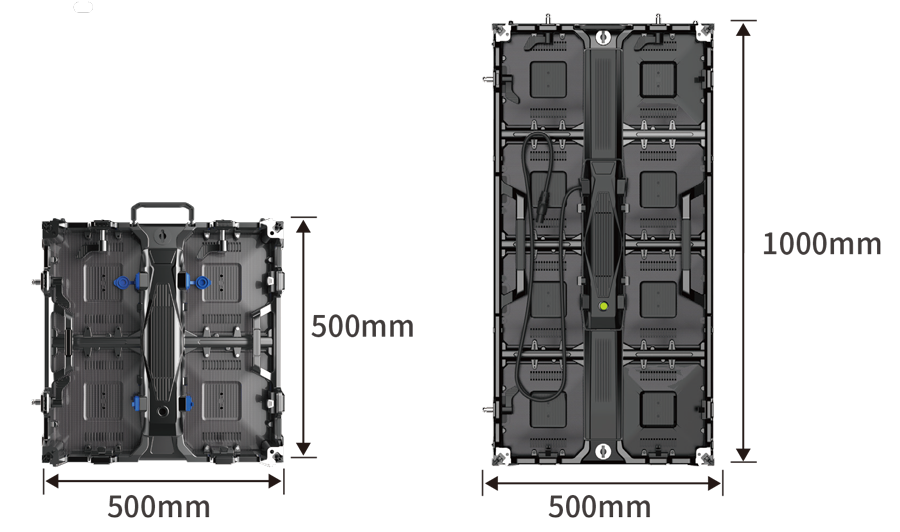

Cabinet Size
Cabinet Resolution
Cabinet Weight
Cabinet Material
Max. Power Consumption
Ave. Power Consumption
Viewing Angle
Refresh Rate
Grey Scale
IP Degree

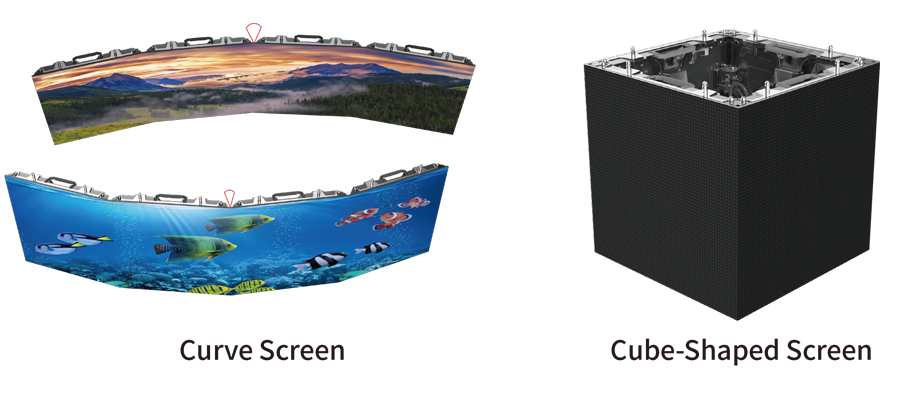

Curve Angle
Life Time
Working Temperature/Humidity
Storage Temperature/Humidity
3.91
1921
65536 pixel/m²
4000nits
6500-9500k
1/16
500*1000*73mm/500mm*500mmX73mm
128*128 dots
7.5kg
die-cast aluminum
≤650w/m²
≤325w/m²
H:160° V:140°
1920hz/3840hz
14-16bit
IP 65
-7.5°~+7.5°
100000
-20℃~+45℃;10%~60%rh
-40℃~+60℃;10%~60%rh
3.91
2020
65536 pixel/m²
800-1000nits
6500-9500k
1/16
500*1000*73mm/500mm*500mmX73mm
128*128 dots
6.3kg
die-cast aluminum
≤500w/m²
≤250w/m²
H:160° V:140°
1920hz/3840hz
14-16bit
IP 30
-7.5°~+7.5°
100000
-20℃~+45℃;10%~60%rh
-40℃~+60℃;10%~60%rh
2.97
2020
112896 pixel/m²
800-1000nits
6500-9500k
1/21
500*1000*73mm/500mm*500mmX73mm
168*168 dots
6.3kg
die-cast aluminum
≤500w/m²
≤250w/m²
H:160° V:140°
1920hz/3840hz
14-16bit
IP 30
-7.5°~+7.5°
100000
-20℃~+45℃;10%~60%rh
-40℃~+60℃;10%~60%rh
2.6
1515/2020(GOB)
147456 pixel/m²
800-1000nits
6500-9500k
1/24
500*1000*73mm/500mm*500mmX73mm
192*192 dots
6.3kg
die-cast aluminum
≤500w/m²
≤250w/m²
H:160° V:140°
1920hz/3840hz
14-16bit
IP 30
-7.5°~+7.5°
100000
-20℃~+45℃;10%~60%rh
-40℃~+60℃;10%~60%rh
1.95
1212(GOB)
262144 pixel/m²
500-800nits
6500-9500k
1/32
500*1000*73mm/500mm*500mmX73mm
256*256 dots
6.3kg
die-cast aluminum
≤500w/m²
≤250w/m²
H:160° V:140°
1920hz/3840hz
14-16bit
IP 30
-7.5°~+7.5°
100000
-20℃~+45℃;10%~60%rh
-40℃~+60℃;10%~60%rh
1.56
1212(GOB)/1010(GOB)
409600 pixel/m²
500-800nits
6500-9500k
1/32
500*1000*73mm/500mm*500mmX73mm
320*320 dots
6.3kg
die-cast aluminum
≤500w/m²
≤250w/m²
H:160° V:140°
1920hz/3840hz
14-16bit
IP 30
-7.5°~+7.5°
100000
-20℃~+45℃;10%~60%rh
-40℃~+60℃;10%~60%rh
