Domino Series
Indoor double-sided led screen

The Domino Series can display content on both sides. This dual-sided visibility ensures that information, advertisements, or visual content can be seen from multiple directions, maximizing audience engagement. For example, in a retail space, customers can view promotions from either side of an aisle, enhancing their shopping experience.

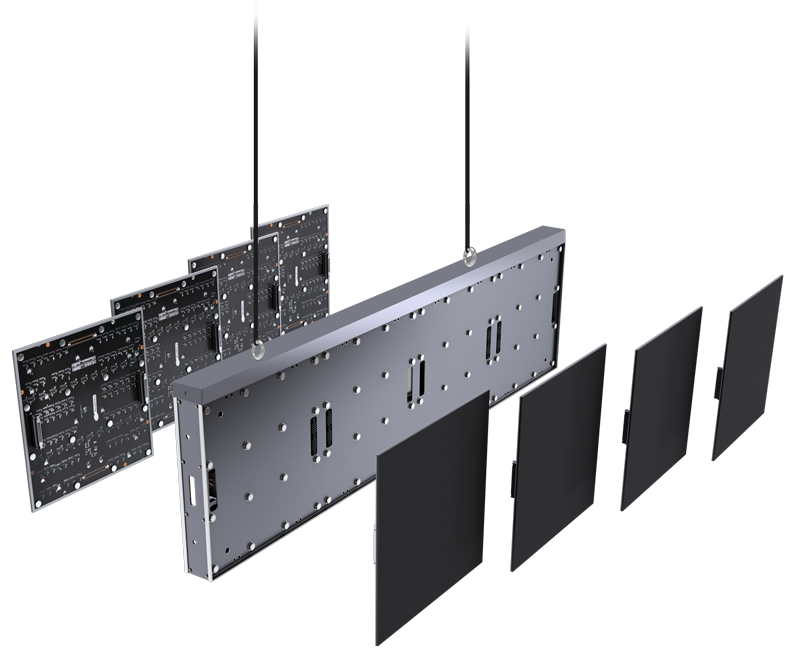

Super Light and Super Slim

Only 53mm thickness and 7.8kg/panel for a double-sided LED display. The Domino Series offers a sleek, modern look that integrates seamlessly into any interior space. This makes them ideal for high-end retail stores, corporate offices, and contemporary public spaces.

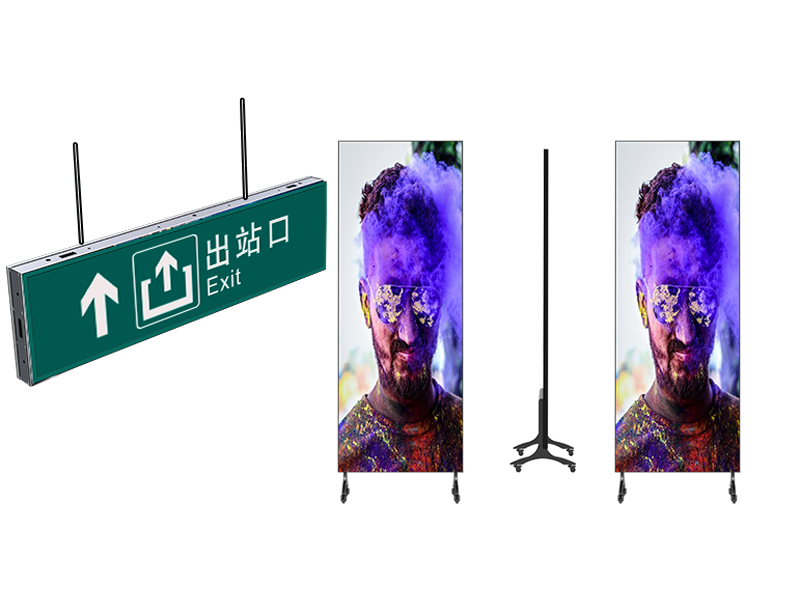

Hanging & Standing

The Domino Series could be hanging or standing installation. A hanging double-sided display with 320° viewing angle, will maximize the advertising effects. When used as a standing installation, only needs to assemble with a standing foot, it will be a double-sided LED poster, could be used in shopping malls, casinos, retail shops, schools etc.


High Resolution & Brightness & 3840Hz Refresh Rate

The Domino Series delivers high-resolution images and videos with exceptional clarity. High brightness levels ensure that content remains visible even in brightly lit environments. This quality is crucial for maintaining the effectiveness of advertisements and informational displays, ensuring that they capture and retain the audience's attention.

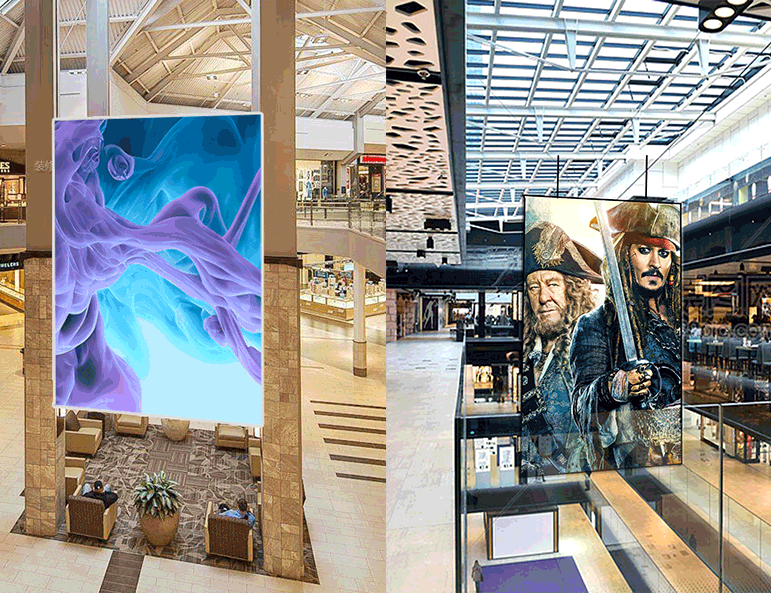

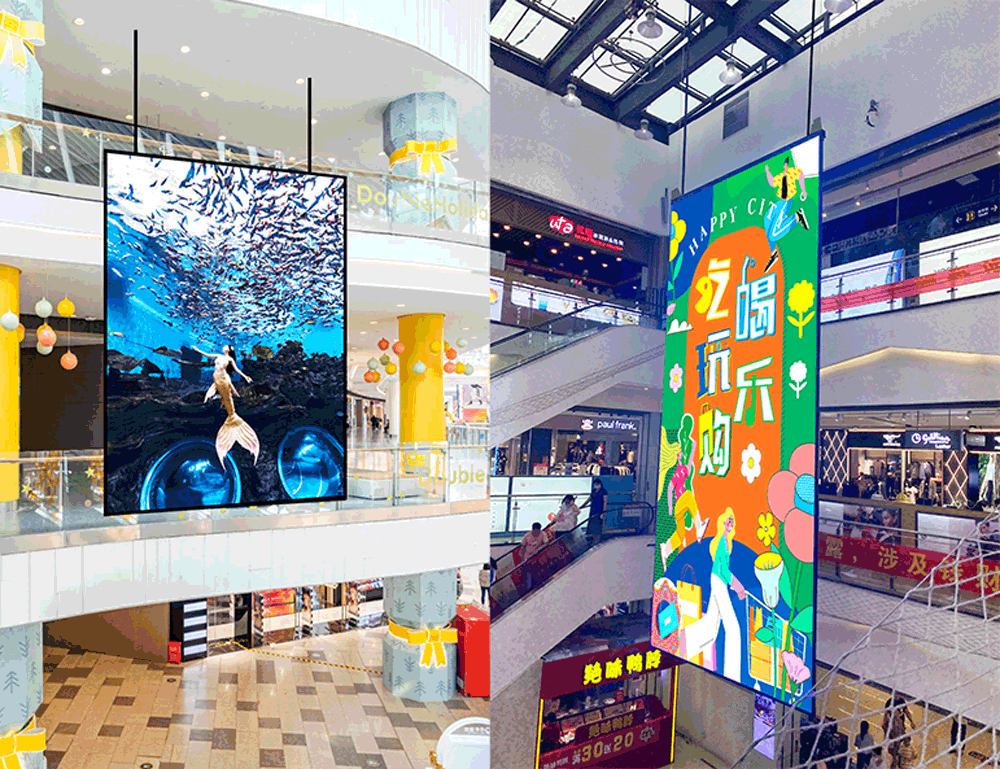

Case Study
Specifications
Domino Series
P1.25
P1.56
P1.95
P2.5
P2.6
P2.97
P3.91
  • Pixel pitch (mm)
  • LED Type
  • Physical density (dots/sqm)
  • Module resolution (dots)
  • Module dimension (mm)
  • Panel size (mm)
  • Module quantity (wxh)
  • Panel resolution (dots)
  • Maintenance
  • Cabinet material
  • Brightness (nits)
  • Color temperature (k)
  • Viewing angle (v/h)
  • Color uniformity
  • Contrast ratio
  • Frame frequency
  • Refresh rate (hz)
  • Max. power consumption (w/sqm)
  • Avg. power consumption (w/sqm)
  • Protection level
  • Working temperature/humidity (°C/rh)
  • Storage temperature/humidity (°C/rh)
  • Certificate
  • P1.25
  • SMD1010
  • 640000
  • 200X200
  • 250X250
  • 1000×250×54
  • 4X1
  • 800×200
  • Front access
  • Aluminum
  • ≥600
  • 3200-9300 Adjustable
  • 160°/160°
  • ≥97%
  • 10000 : 1
  • 50/60Hz
  • 3840
  • 650
  • 100-200
  • IP31
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • P1.56
  • SMD1010
  • 409600
  • 160X160
  • 250X250
  • 1000×250×54
  • 4X1
  • 640×160
  • Front access
  • Aluminum
  • ≥600
  • 3200-9300 Adjustable
  • 160°/160°
  • ≥97%
  • 10000 : 1
  • 50/60Hz
  • 3840
  • 650
  • 100-200
  • IP31
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • P1.95
  • SMD1515
  • 262144
  • 128X128
  • 250X250
  • 1000×250×54
  • 4X1
  • 512×128
  • Front access
  • Aluminum
  • ≥600
  • 3200-9300 Adjustable
  • 160°/160°
  • ≥97%
  • 10000 : 1
  • 50/60Hz
  • 3840
  • 650
  • 100-200
  • IP31
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • P2.5
  • SMD1515
  • 160000
  • 100X100
  • 250X250
  • 1000×250×54
  • 4X1
  • 400×100
  • Front access
  • Aluminum
  • ≥600
  • 3200-9300 Adjustable
  • 160°/160°
  • ≥97%
  • 10000 : 1
  • 50/60Hz
  • 3840
  • 650
  • 100-200
  • IP31
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • P2.6
  • SMD1515
  • 147456
  • 96X96
  • 250X250
  • 1000×250×54
  • 4X1
  • 384×96
  • Front access
  • Aluminum
  • ≥600
  • 3200-9300 Adjustable
  • 160°/160°
  • ≥97%
  • 10000 : 1
  • 50/60Hz
  • 3840
  • 650
  • 100-200
  • IP31
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • P2.97
  • SMD1515
  • 112896
  • 84X84
  • 250X250
  • 1000×250×54
  • 4X1
  • 336×84
  • Front access
  • Aluminum
  • ≥600
  • 3200-9300 Adjustable
  • 160°/160°
  • ≥97%
  • 10000 : 1
  • 50/60Hz
  • 3840
  • 650
  • 100-200
  • IP31
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • P3.91
  • SMD1515
  • 65536
  • 64X64
  • 250X250
  • 1000×250×54
  • 4X1
  • 256×64
  • Front access
  • Aluminum
  • ≥600
  • 3200-9300 Adjustable
  • 160°/160°
  • ≥97%
  • 10000 : 1
  • 50/60Hz
  • 3840
  • 650
  • 100-200
  • IP31
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
