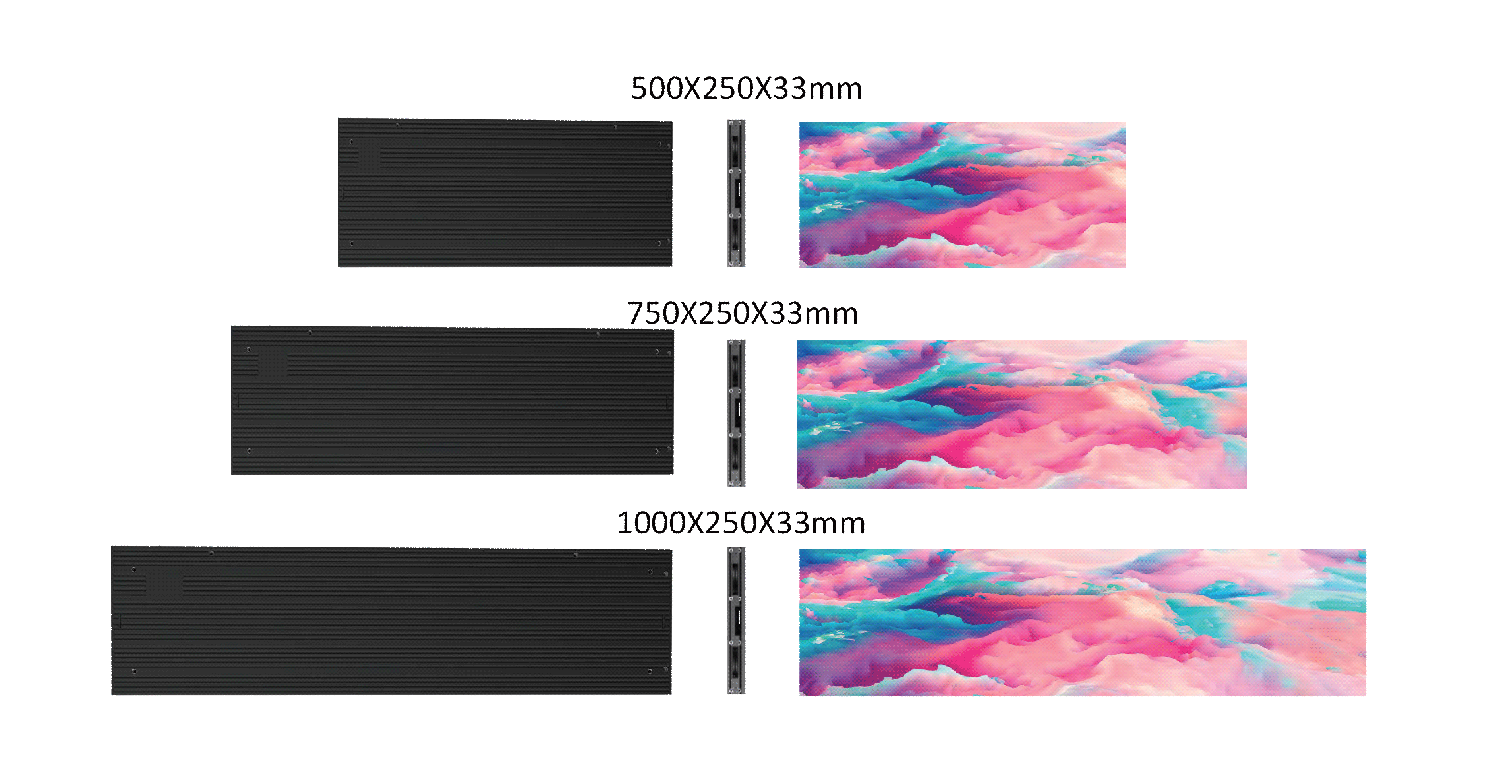

The Ribbon Series LED video panels offer a range of cabinet sizes to cater to the diverse requirements of various application scenarios.

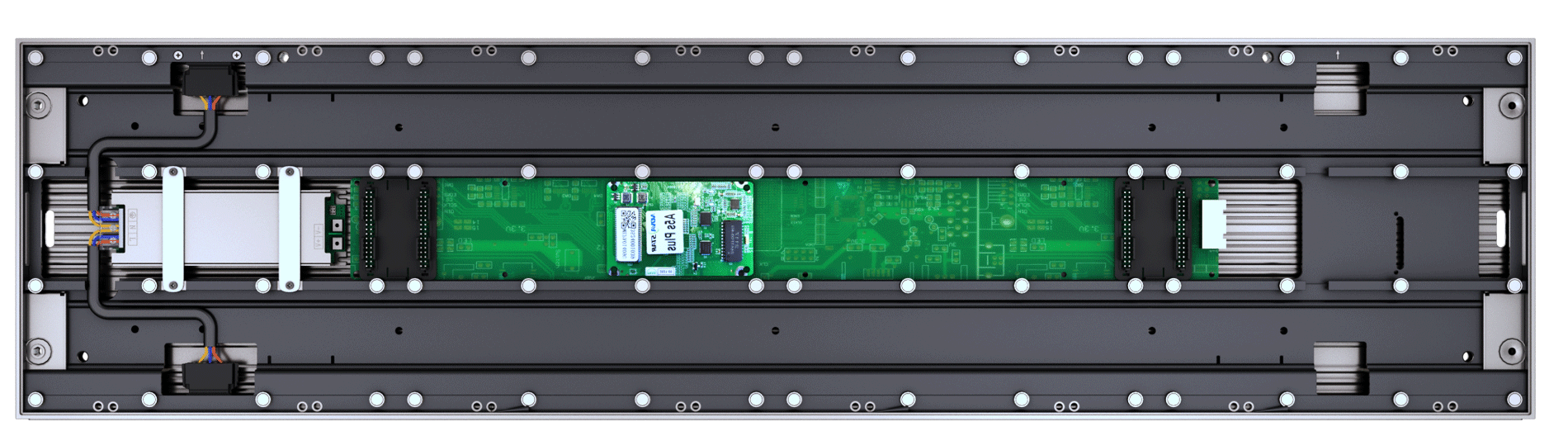

Wireless Connectivity Design
Dive into seamless connectivity with our wireless connector innovation. Eliminate
cable chaos and relish in swift setup and takedown.

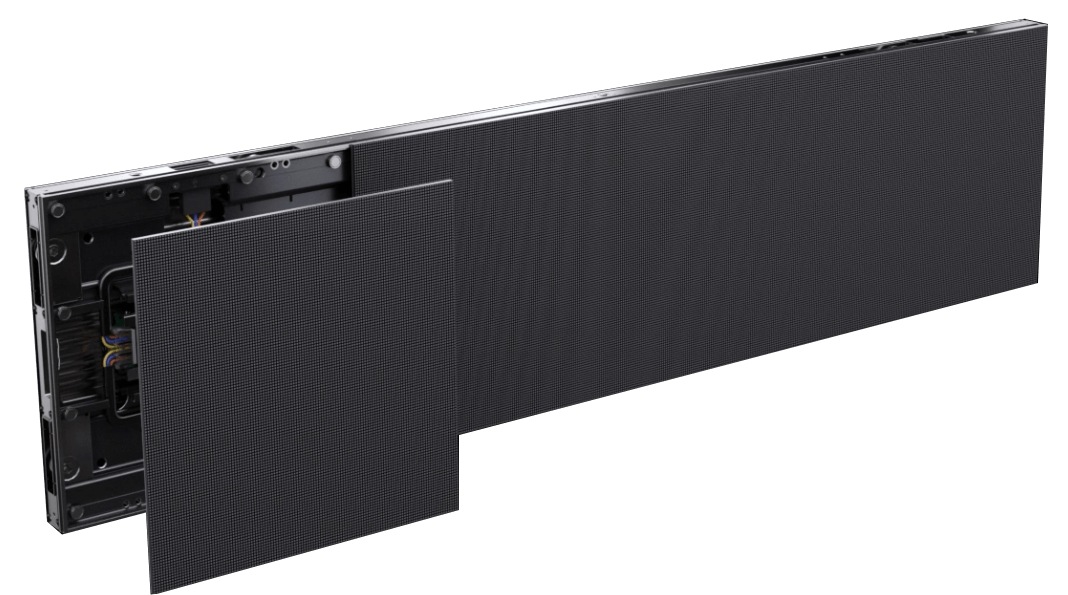

Fully Front Maintenance
Supporting fully front maintenance with vacuum tools for easy operation and assembly, requires no special maintenance channels.

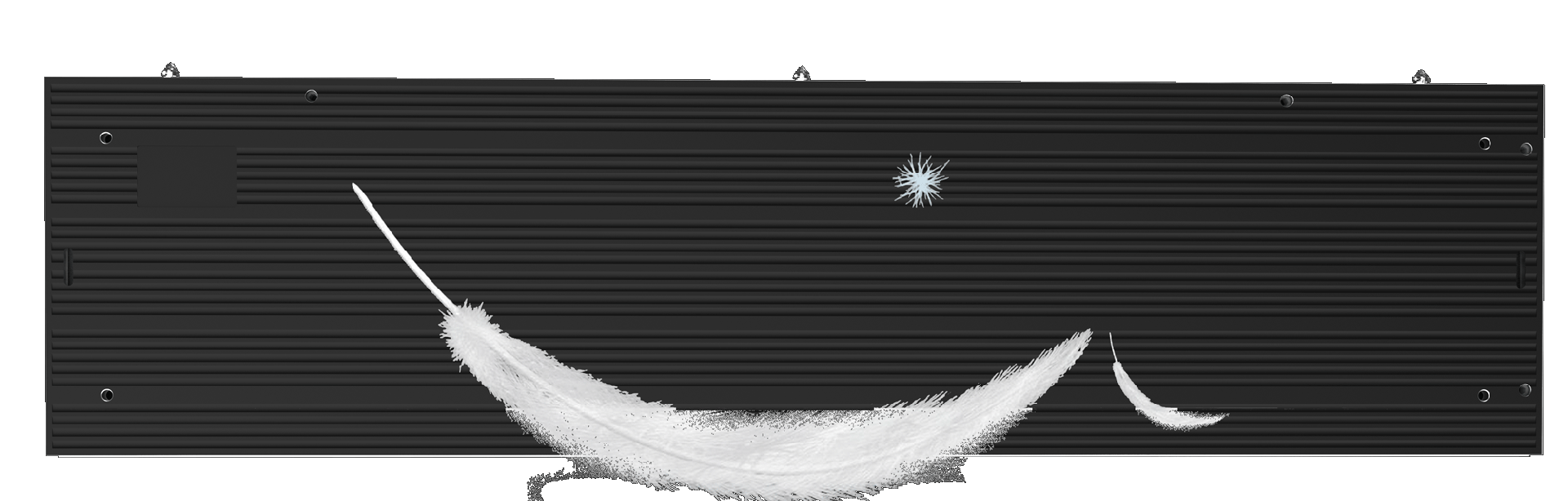

Lightweight Design
The Ribbon Series boasts a fully die-cast aluminum cabinet, ensuring heightened overall precision and flatness. With a weight of 2.9kg per panel, it is both thin and easy to transport.
Ultimate Picture Quality
The Ribbon Series is produced by an impressive 800 nits high brightness, a rapid 3840Hz refresh rate, and exceptional 14-bit grey scale.

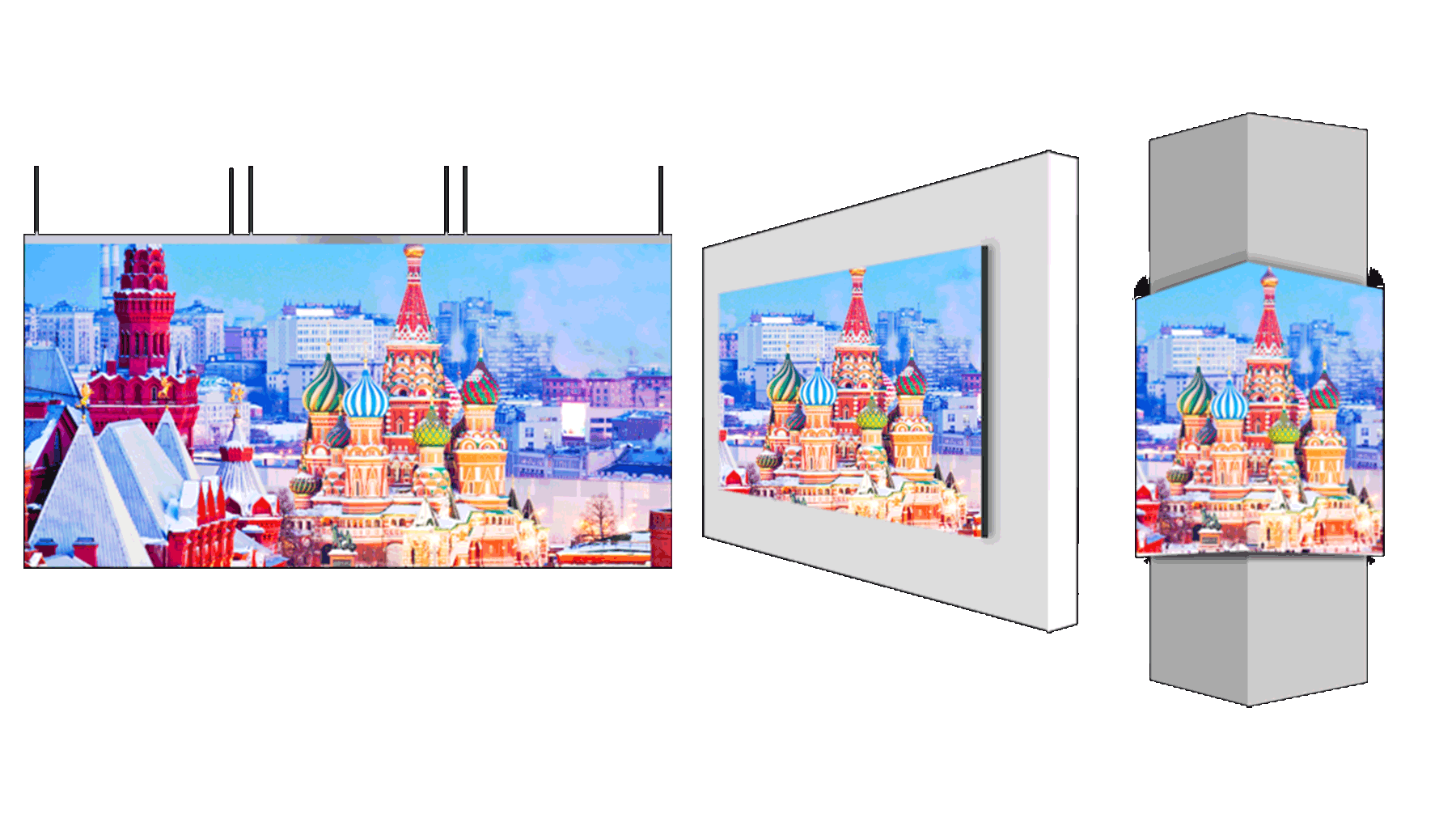

Various Installation
The Ribbon Series offers versatile installation options including hanging, wall-mounting, and precise 90° splicing, catering to a wide array of environmental requirements with ease.
Specifications
Ribbon Series
P1.25
P1.5625
P1.95
P2.5
P2.604
P2.976
P3.91
Pixel Pitch
LED Type
Physical Density(dots/sqm)
Module Resolution(dots)
Module Dimension(mm)
Panel Size(mm)
Module Quantity(wxh)
Panel Resolution(dots)
Maintenance
Cabinet Material
Brightness(nits)
Color Temperature(k)
Viewing Angle(v/h)
Brightness/Color Uniformity
Contrast Ratio
Frame Frequency
Grey Level
Refresh Rate(hz)
Max. Power Consumption(w/sqm)
Avg.Power Consumption(w/sqm)
Protection Level
Working Temperature/Humidity(°C/rh)
Storage Temperature/Humidity(°C/rh)
Certificate
P1.25
SMD1010
640000
200X200
250X250
1000×250×33
750×250×33
500×250×33
4X1/3X1/2X1
800×200
600X200
400×200
front access
aluminum
≥600
3200-9300 adjustable
160/160°
≥97%
10000 :1
50/60hz
≥14bit
3840
650
100-200
IP31
-20-609C/10%-85%
-20-60C/10%6-85%
CCC/CE/ROHS/FCC/CB/TUV/IEC
P1.5625
SMD1212
409600
160X160
250X250
1000×250×33
750×250×33
500×250×33
4X1/3X1/2X1
640×160
480X160
320×160
front access
aluminum
≥600
3200-9300 adjustable
160/160°
≥97%
10000 :1
50/60hz
≥14bit
3840
650
100-200
IP31
-20-609C/10%-85%
-20-60C/10%6-85%
CCC/CE/ROHS/FCC/CB/TUV/IEC
P1.95
SMD1515
262144
128X128
250X250
1000×250×33
750×250×33
500×250×33
4X1/3X1/2X1
512×128
384×128
256×128
front access
aluminum
≥600
3200-9300 adjustable
160/160°
≥97%
10000 :1
50/60hz
≥14bit
3840
650
100-200
IP31
-20-609C/10%-85%
-20-60C/10%6-85%
CCC/CE/ROHS/FCC/CB/TUV/IEC
P2.5
SMD1515
160000
100X100
250X250
1000×250×33
750×250×33
500×250×33
4X1/3X1/2X1
400×100
300×100
200×100
front access
aluminum
≥600
3200-9300 adjustable
160/160°
≥97%
10000 :1
50/60hz
≥14bit
3840
650
100-200
IP31
-20-609C/10%-85%
-20-60C/10%6-85%
CCC/CE/ROHS/FCC/CB/TUV/IEC
P2.604
SMD1515
147456
96X96
250X250
1000×250×33
750×250×33
500×250×33
4X1/3X1/2X1
384×96
288×96
192×96
front access
aluminum
≥600
3200-9300 adjustable
160/160°
≥97%
10000 :1
50/60hz
≥14bit
3840
650
100-200
IP31
-20-609C/10%-85%
-20-60C/10%6-85%
CCC/CE/ROHS/FCC/CB/TUV/IEC
P2.976
SMD1515
112896
84X84
250X250
1000×250×33
750×250×33
500×250×33
4X1/3X1/2X1
336×84
252×84
168×84
front access
aluminum
≥600
3200-9300 adjustable
160/160°
≥97%
10000 :1
50/60hz
≥14bit
3840
650
100-200
IP31
-20-609C/10%-85%
-20-60C/10%6-85%
CCC/CE/ROHS/FCC/CB/TUV/IEC
P3.91
SMD1515
112896
64X64
250X250
1000×250×33
750×250×33
500×250×33
4X1/3X1/2X1
256×64
192×64
128×64
front access
aluminum
≥600
3200-9300 adjustable
160/160°
≥97%
10000 :1
50/60hz
≥14bit
3840
650
100-200
IP31
-20-609C/10%-85%
-20-60C/10%6-85%
CCC/CE/ROHS/FCC/CB/TUV/IEC
