Terra Series

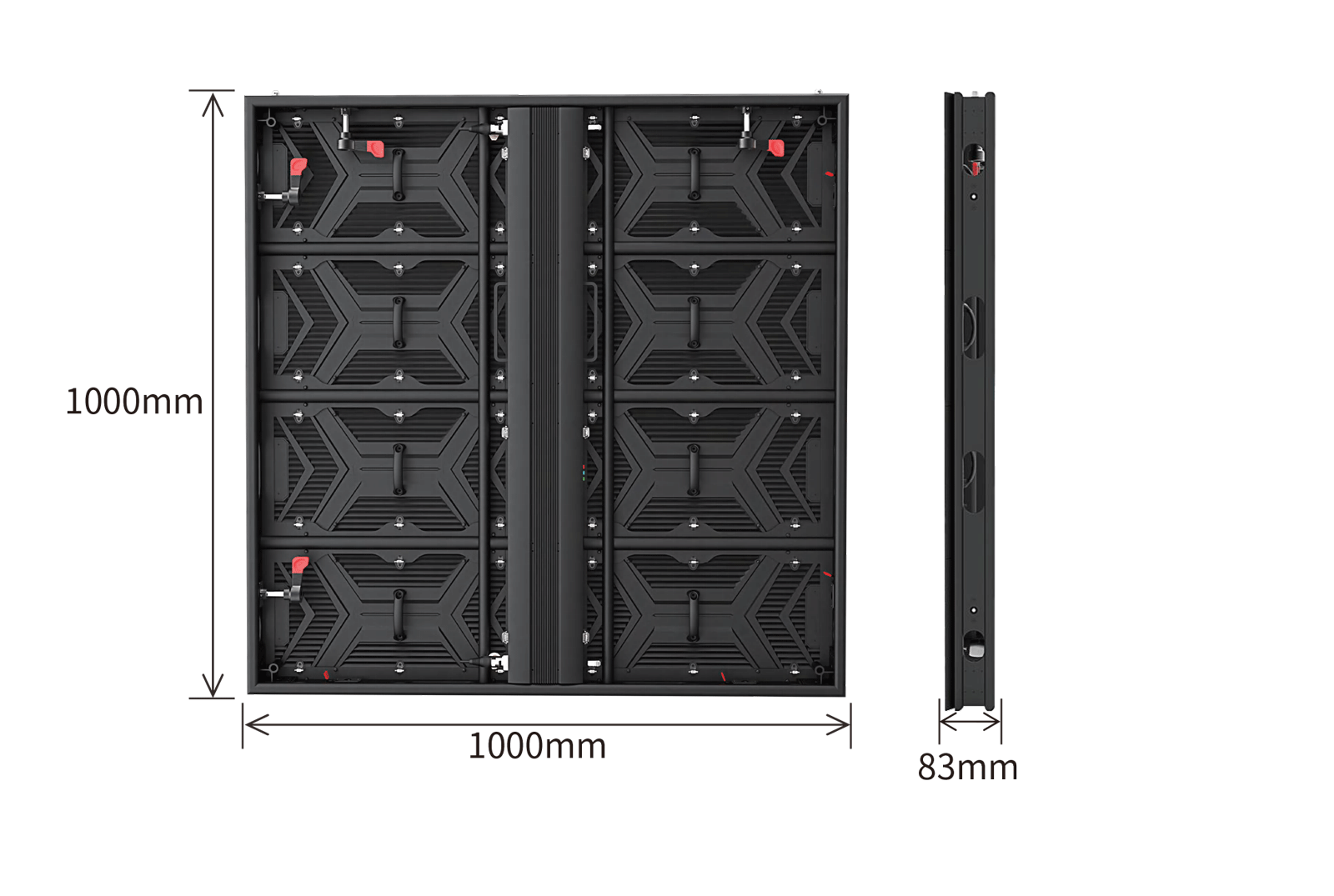

Cabinet size

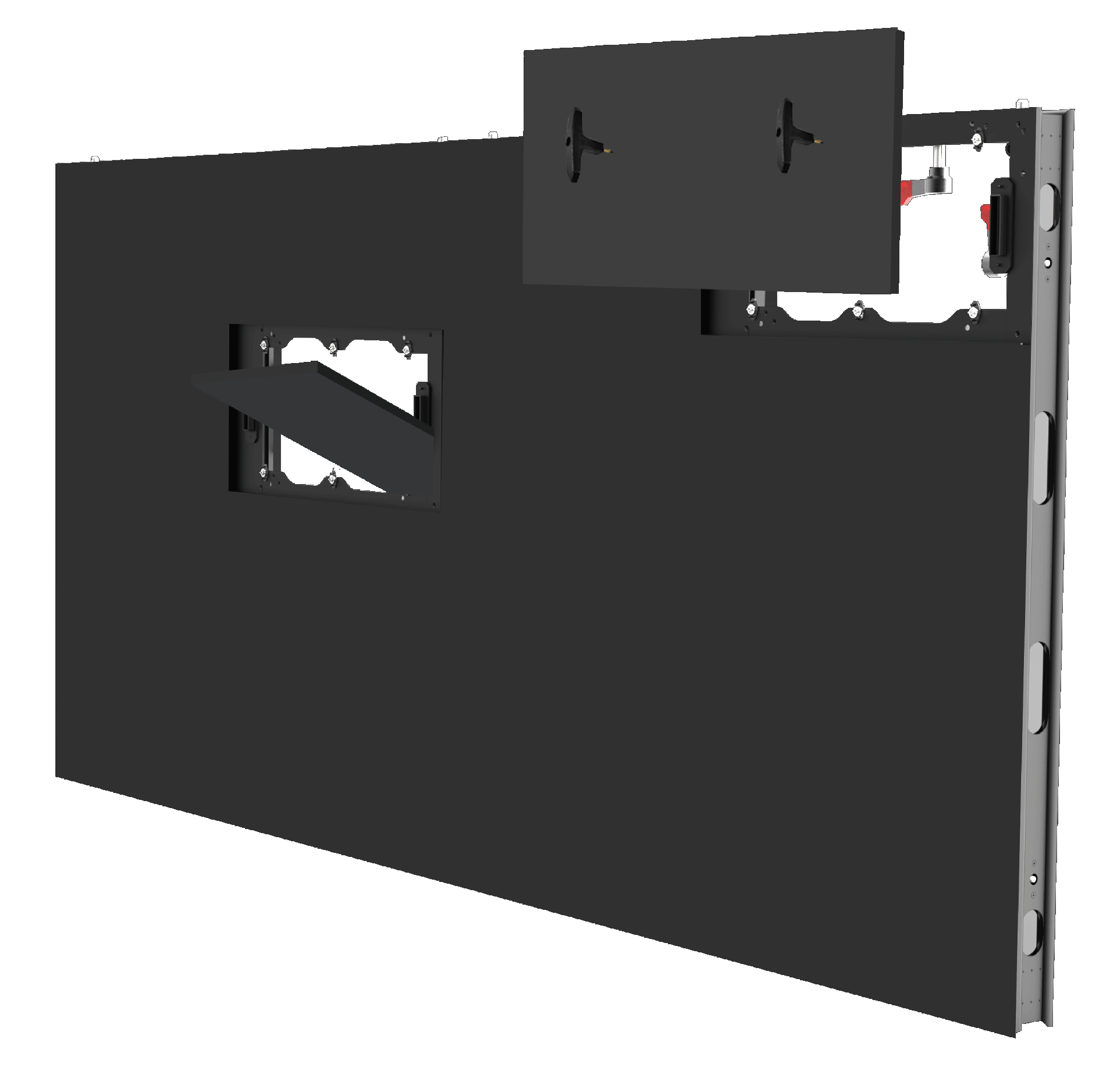

Front and rear access

The Terra Series supports front & rear installation and maintenance, flexible installation and use.

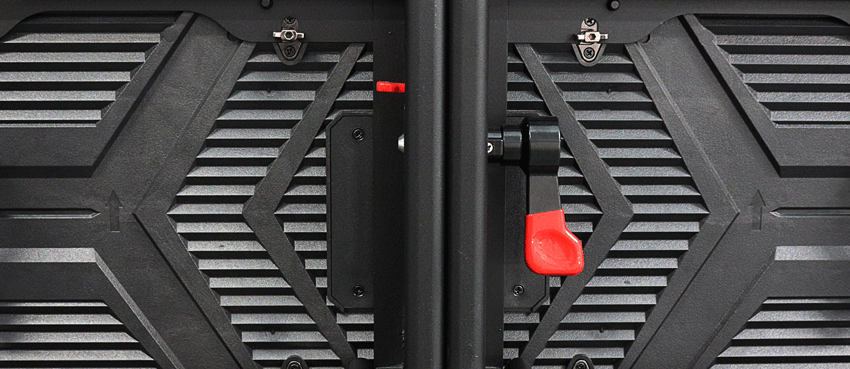

Fast lock design

Stainless fast lock and high precision aluminum alloy panel can achieve quick assembly.

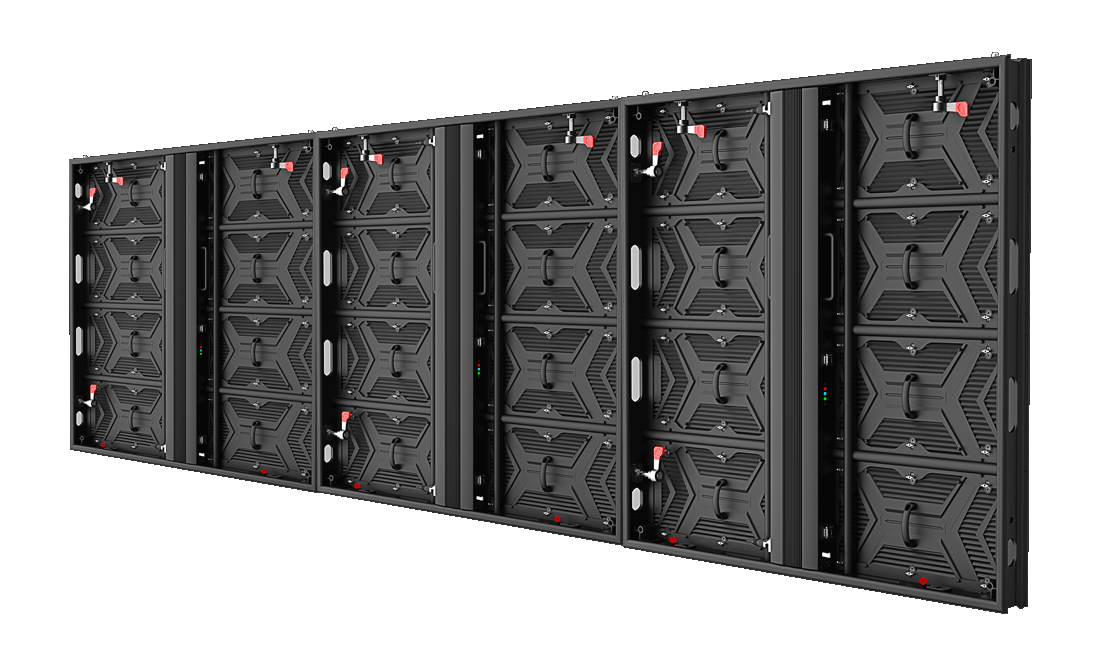

Seamless splicing

Delicate structure


Seamless splicing


Perfect flatness

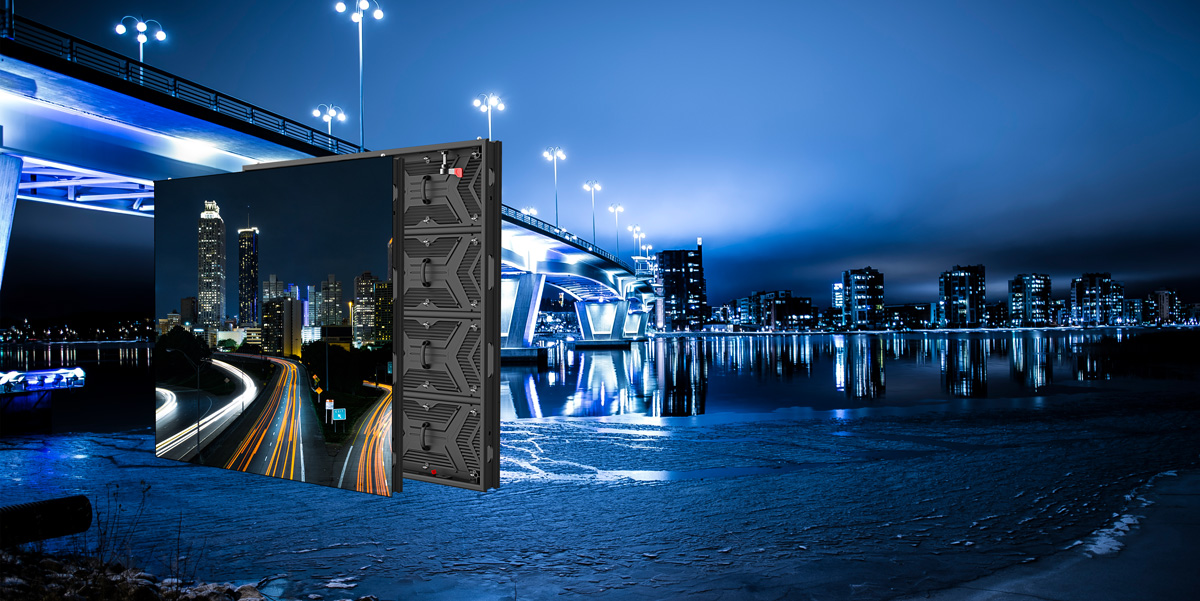

Extremely real display performance



The Terra Series presents a better performance in display. Thus, it will create more value for media advertising by attracting more audience and increase price for ads.


High Brightness:10000nit


High Refresh Rate:3840+ Hz


High Gray Scale:16bit



Wide viewing angle

Ultra-wide viewing angle of 160° horizontal and 140° vertical, which can maximize the coverage of the audience and improve the return on investment.

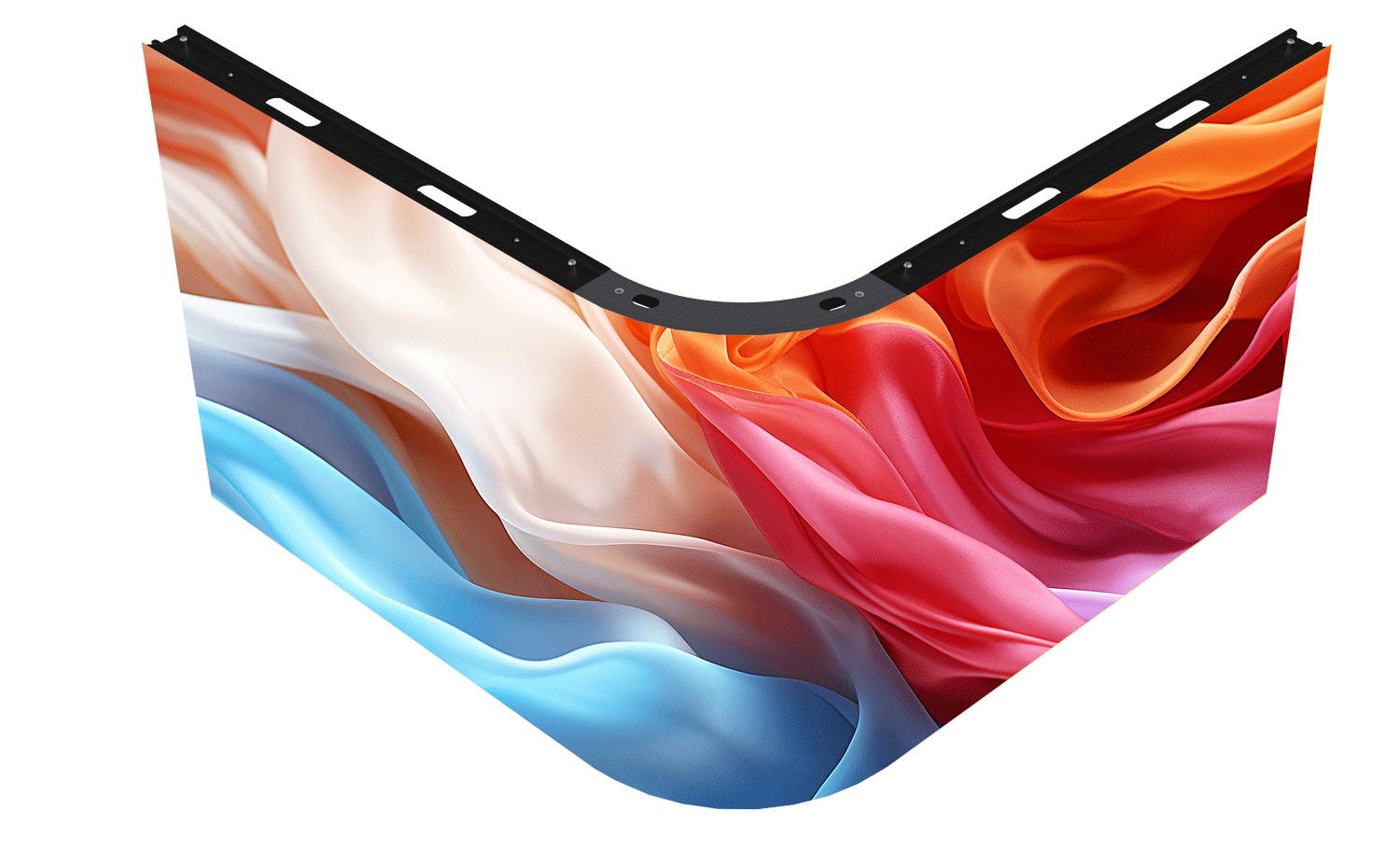

Naked-eye 3D solution

The standard version cabinet support splicing with curved cabinet to achieve small-diameter corner solutions.

The cabinet has a 45° design, which can easily match the needs of different scenarios.

The curving angle of curved cabinet can be customized according to demands.

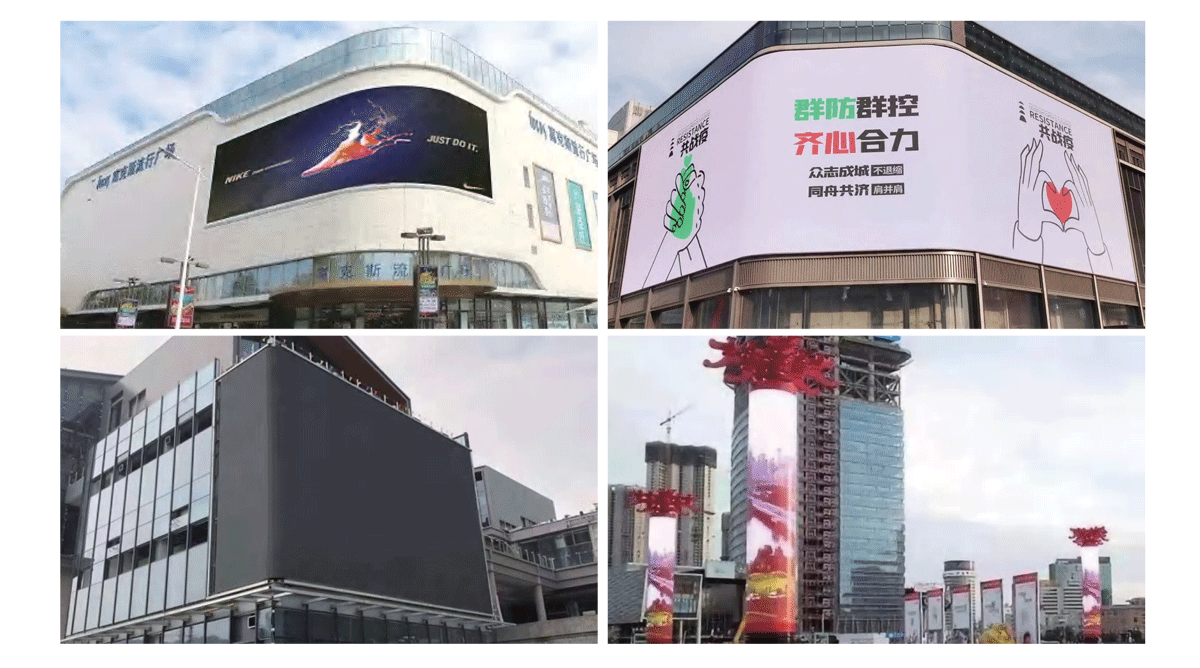

Case study
Specifications
Terra Series
P2.97
P3.91
P4.81
P6.25
P7.81
P10.42
  • Pixel Pitch
  • SMD Type
  • Physical Density (dots/㎡)
  • Module Resolution (dots)
  • Module size (mm)
  • Cabinet size (mm)
  • Cabinet Resolution (dots)
  • Module Quantity (wxh)
  • Maintenance Mode
  • Cabinet Material
  • Brightness (nits)
  • Color Temperature (k)
  • Viewing Angle (h/v)
  • Contrast Ratio
  • Frame Frequency
  • Gray Level
  • Refresh Rate (hz)
  • Max. Power Consumption (w/㎡)
  • Avg. Power Consumption (w/㎡)
  • IP
  • Working Temp/Humidity (℃/rh)
  • Storage Temp/Humidity (℃/rh)
  • Certificate
  • P2.976
  • SMD1415
  • 112896
  • 168X84
  • 500X250
  • 1000X1000X83
  • 336X336
  • 2×4
  • front & rear
  • aluminum
  • ≥4500
  • 1000-18500 adjustable
  • 140°/160°
  • 5000 : 1
  • 50/60
  • 16bit
  • 3840
  • 800
  • 200-300
  • IP65
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • P3.91
  • SMD1921
  • 65536
  • 128X64
  • 500X250
  • 1000X1000X83
  • 256X256
  • 2×4
  • front & rear
  • aluminum
  • ≥6000
  • 1000-18500 adjustable
  • 140°/160°
  • 10000 : 1
  • 50/60
  • 16bit
  • 3840
  • 650
  • 100-200
  • IP65
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • P4.81
  • SMD1921
  • 43264
  • 104X52
  • 500X250
  • 1000X1000X83
  • 208X208
  • 2×4
  • front & rear
  • aluminum
  • ≥6000
  • 1000-18500 adjustable
  • 140°/160°
  • 10000 : 1
  • 50/60
  • 16bit
  • 3840
  • 650
  • 100-200
  • IP65
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • P6.25
  • SMD2727
  • 25600
  • 80X40
  • 500X250
  • 1000X1000X83
  • 160X160
  • 2×4
  • front & rear
  • aluminum
  • ≥6000
  • 1000-18500 adjustable
  • 140°/160°
  • 10000 : 1
  • 50/60
  • 16bit
  • 3840
  • 650
  • 100-200
  • IP65
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • P7.81
  • SMD2727
  • 16384
  • 64X32
  • 500X250
  • 1000X1000X83
  • 128x128
  • 2×4
  • front & rear
  • aluminum
  • ≥6000
  • 1000-18500 adjustable
  • 140°/160°
  • 10000 : 1
  • 50/60
  • 16bit
  • 3840
  • 650
  • 100-200
  • IP65
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • P10.42
  • SMD2727
  • 9216
  • 48X24
  • 500X250
  • 1000X1000X83
  • 96X96
  • 2×4
  • front & rear
  • aluminum
  • ≥6000
  • 1000-18500 adjustable
  • 140°/160°
  • 10000 : 1
  • 50/60
  • 16bit
  • 3840
  • 650
  • 100-200
  • IP65
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
