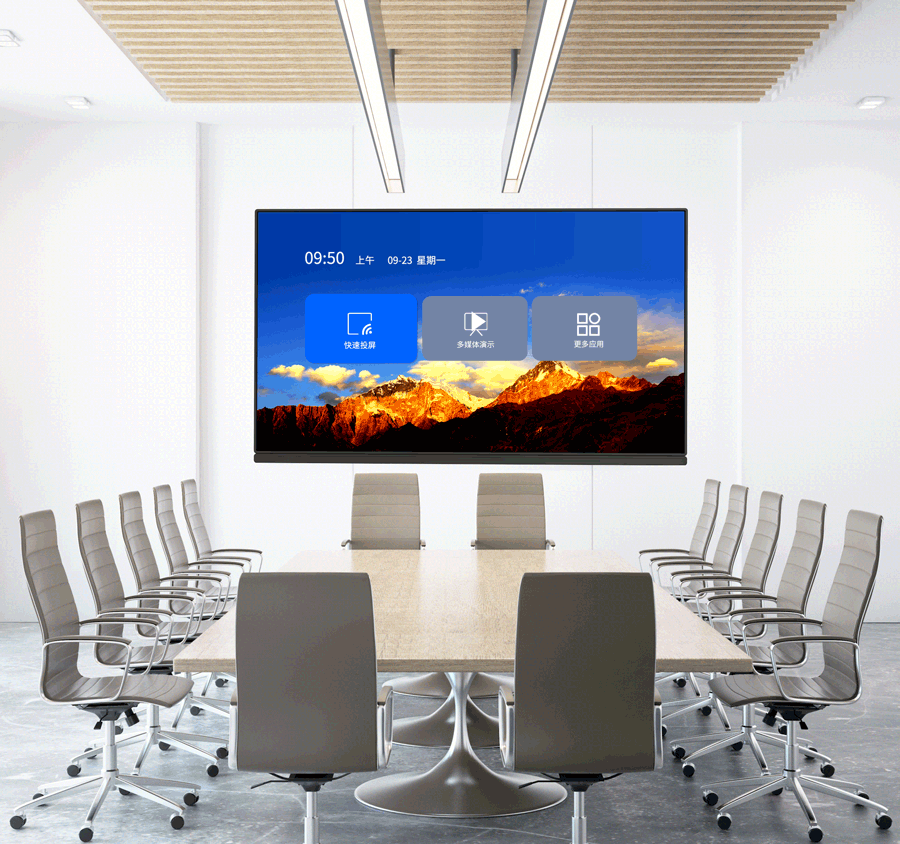

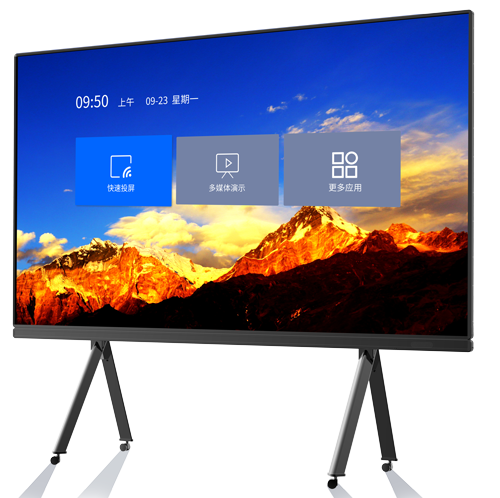

UNO Series
All in One Board (COB/SMD)
The UNO Series comes as a complete kit ready to install, including controller, audio, PSU and all necessary display elements needed for the installation. There's no need for complex wiring and debugging,it' s easy to install and use.

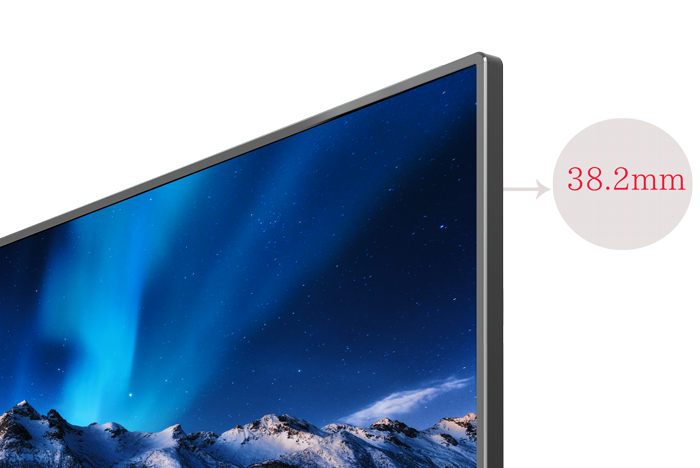

Ultra-Slim Frame
With 38.2mm thickness, providing an immersive experience for all the viewers.Rounded comer and ultra-narrow frame.

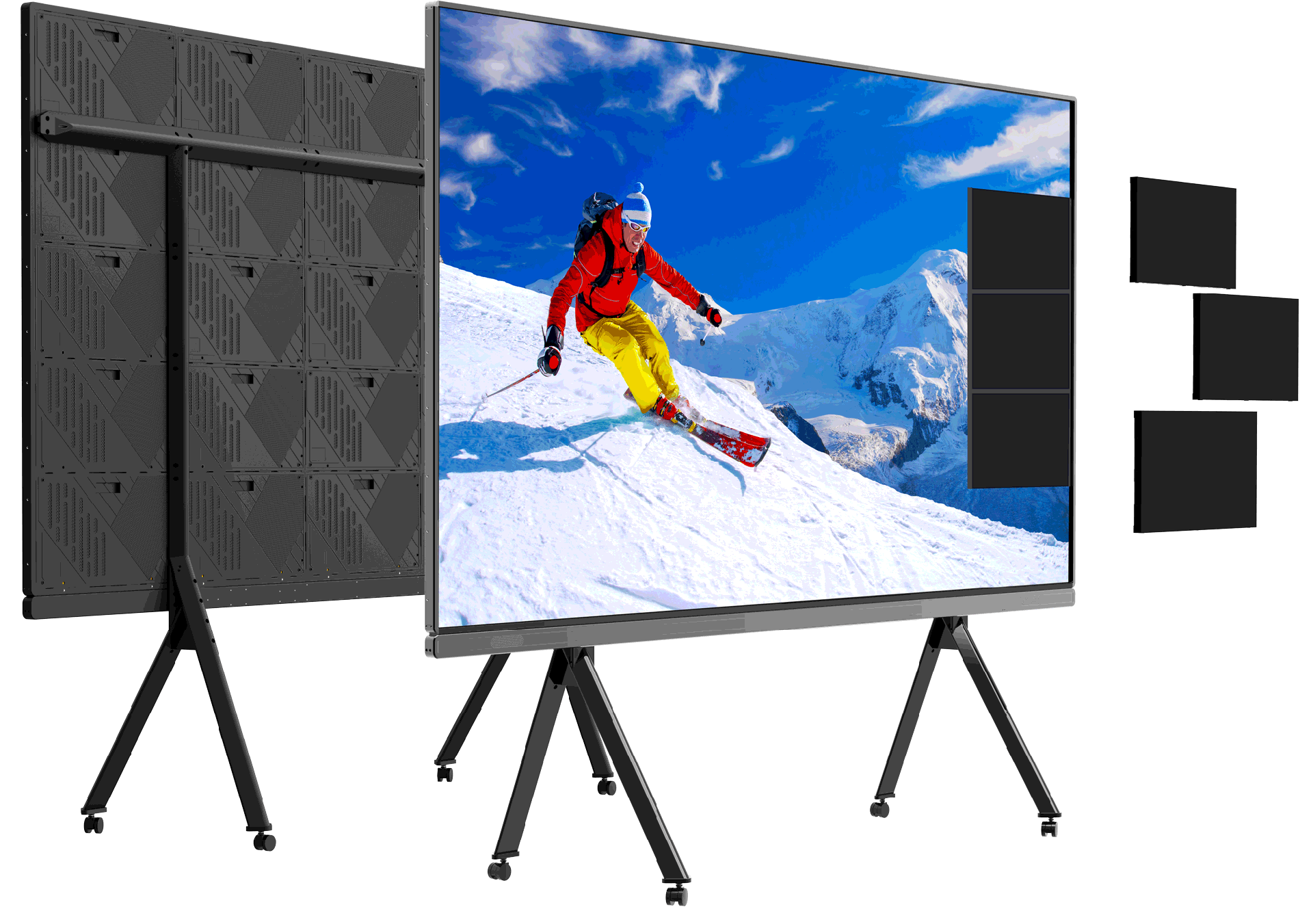

Modular Design, Flexible Installation
The modular design enables it to be easily transported to offices and in elevators and easy for maintenance and installation.

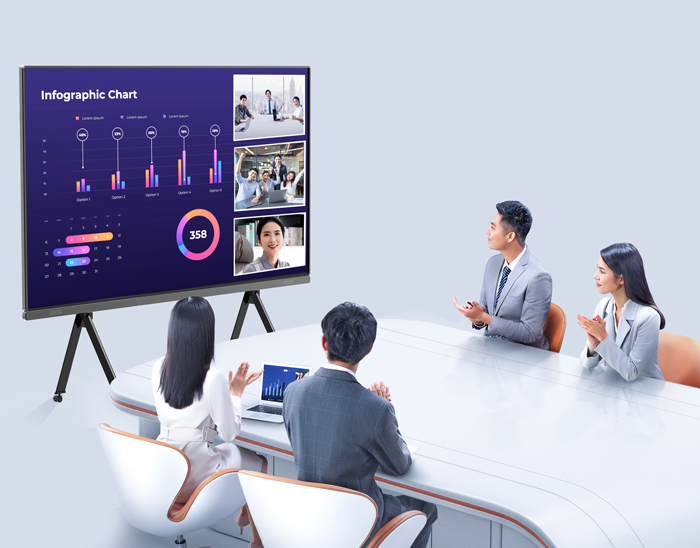

Easy and Reliable Content Sharing
The UNO Series supports screen casting through mobile phones,tablets, PCs, and various other devices. You can share up to 4 devices at one time wirelessly, allowing, simultaneous creative displays.

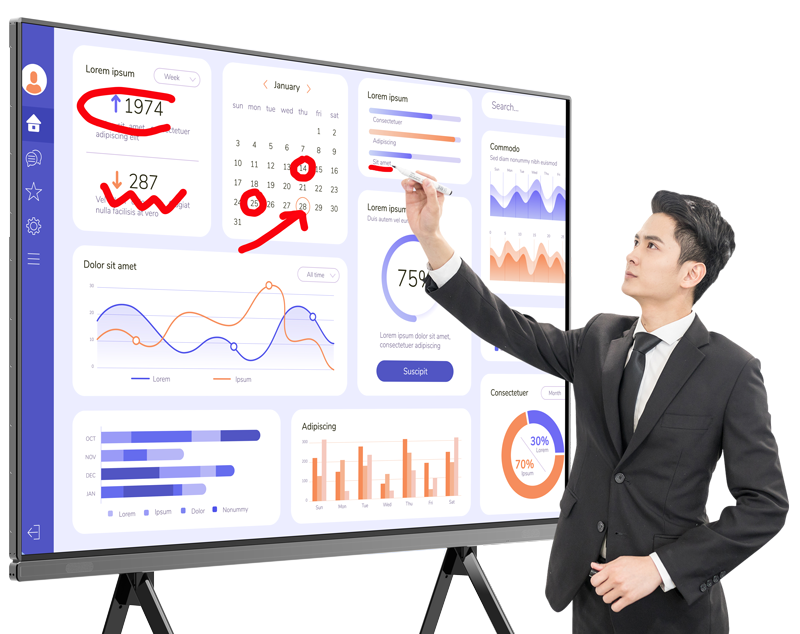

Infrared Touch System
Equipped with a high-precision infrared touch system, the UNO Series revolutionizes interactivity and elevating, user engagement. With 1mm touch accuracy and support for 20-point multi touch and smart gestures, it delivers seamless and intuitive interactions.
Remote Control for Easy Operation
Effortlessly control the display using, the remote and user-friendly interface, providing a TV ormonitor-like experience. Enjoy the convenience of functions such as power on-off, parameter adjustment, and page navigation, all at your fingertips.

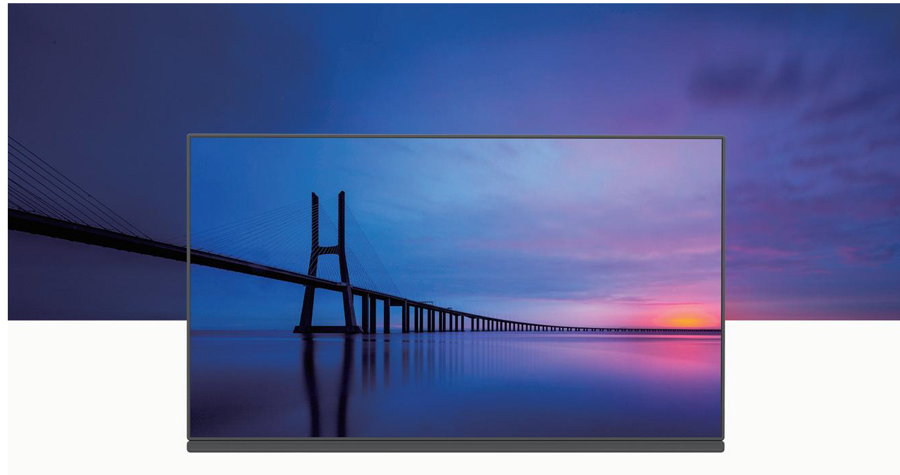

Ultra Wide ViewingAngle
A 170° wide viewing angle allows everyone see fine details and vibrant colors from either side of the room.

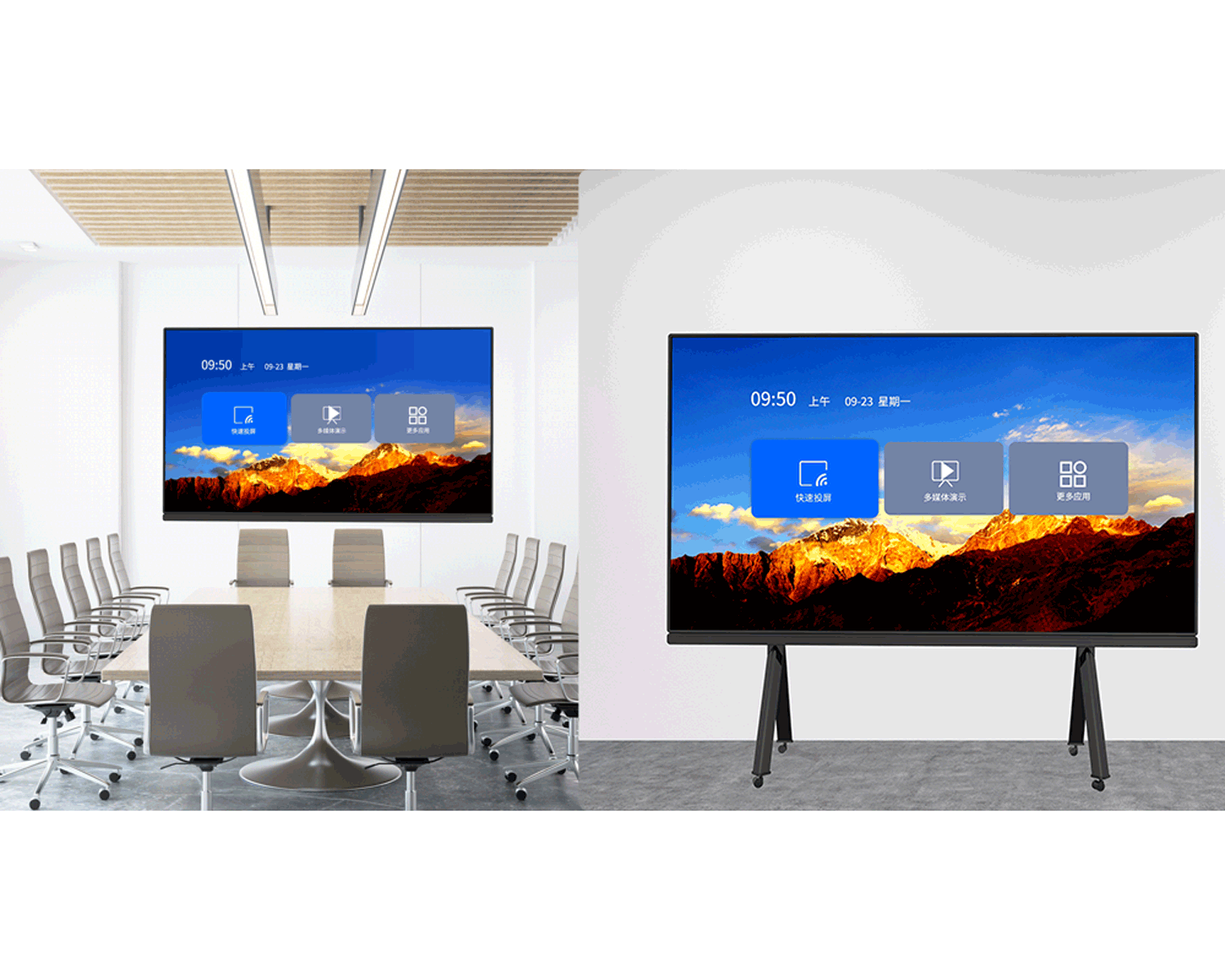

Two Installation Options
A wall mount and mobile stands enable the device to be flexibly installed in different scenarios.
Specifications
UNO Series
108"
136"
136"
163"
163"
  • Specification
  • LED Type
  • Resolution
  • Pixel Pitch
  • Screen Display Size
  • Whole Screen Size
  • Refresh Rate(Hz)
  • Brightness (nits)
  • Viewing Angle(V/H)
  • Max. Power Consumption(W/Set)
  • Avg. Power Consumption(W/Set)
  • Gray Scale
  • Contrast Ratio
  • Operating System
  • CPU
  • RAM+Storage Capacity
  • Access Way
  • Video Interface
  • Signal Interface
  • Audio Interface
  • Installation Mode
  • Working Temperature/Humidity(℃/RH)
  • Storage Temperature/Humidity(℃/RH)
  • Certificate
  • 108"
  • SMD1010/COB
  • 2K
  • 1.2mm
  • 2400X1350mm
  • 2430X1475mm
  • 1920~3840Hz
  • ≥600
  • 170°/170°
  • 600W
  • 2000W
  • 14~16 bit
  • 10000 : 1
  • Windows/Android
  • 1.8Ghz，64-bit
  • 4GB+32GB
  • Front maintenance
  • HDMI×3(2 input 1 output)，USB3.0，USB2.0×2,RF
  • RJ45， USB-B, WiFi，Bluetooth，Infrared
  • Internal 2×5W speakers，External Audio interface
  • Moveable(standard) / Wall mounting(optional)
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • 136"
  • SMD1010/COB
  • 2K
  • 1.5mm
  • 3000X1687.5mm
  • 3030X1812.5mm
  • 1920~3840Hz
  • ≥600
  • 170°/170°
  • 900W
  • 3000W
  • 14~16 bit
  • 10000 : 1
  • Windows/Android
  • 1.8Ghz，64-bit
  • 4GB+32GB
  • Front maintenance
  • HDMI×3(2 input 1 output)，USB3.0，USB2.0×2,RF
  • RJ45， USB-B, WiFi，Bluetooth，Infrared
  • Internal 2×5W speakers，External Audio interface
  • Moveable(standard) / Wall mounting(optional)
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • 136"
  • SMD1010/COB
  • 4K
  • 0.7mm
  • 3000X1687.5mm
  • 3030X1812.5mm
  • 1920~3840Hz
  • ≥600
  • 170°/170°
  • 900W
  • 3000W
  • 14~16 bit
  • 10000 : 1
  • Windows/Android
  • 1.8Ghz，64-bit
  • 4GB+32GB
  • Front maintenance
  • HDMI×3(2 input 1 output)，USB3.0，USB2.0×2,RF
  • RJ45， USB-B, WiFi，Bluetooth，Infrared
  • Internal 2×5W speakers，External Audio interface
  • Moveable(standard) / Wall mounting(optional)
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • 163"
  • Mini4-in-1/COB
  • 2K
  • 1.8mm
  • 3600X2025mm
  • 3630X2150mm
  • 1920~3840Hz
  • ≥600
  • 170°/170°
  • 1300W
  • 4300W
  • 14~16 bit
  • 10000 : 1
  • Windows/Android
  • 1.8Ghz，64-bit
  • 4GB+32GB
  • Front maintenance
  • HDMI×3(2 input 1 output)，USB3.0，USB2.0×2,RF
  • RJ45， USB-B, WiFi，Bluetooth，Infrared
  • Internal 2×5W speakers，External Audio interface
  • Moveable(standard) / Wall mounting(optional)
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
  • 163"
  • Mini4-in-1/COB
  • 4K
  • 0.9mm
  • 3600X2025mm
  • 3630X2150mm
  • 1920~3840Hz
  • ≥600
  • 170°/170°
  • 1300W
  • 4300W
  • 14~16 bit
  • 10000 : 1
  • Windows/Android
  • 1.8Ghz，64-bit
  • 4GB+32GB
  • Front maintenance
  • HDMI×3(2 input 1 output)，USB3.0，USB2.0×2,RF
  • RJ45， USB-B, WiFi，Bluetooth，Infrared
  • Internal 2×5W speakers，External Audio interface
  • Moveable(standard) / Wall mounting(optional)
  • -20~60℃/10%~85%
  • -20~60℃/10%~85%
  • CCC/CE/RoHS/FCC/CB/TUV/IEC
