By using vacuum maintenance tools, it simplifies front-end maintenance without the need for extra channels, ensuring easy assembly and a user-friendly operation.

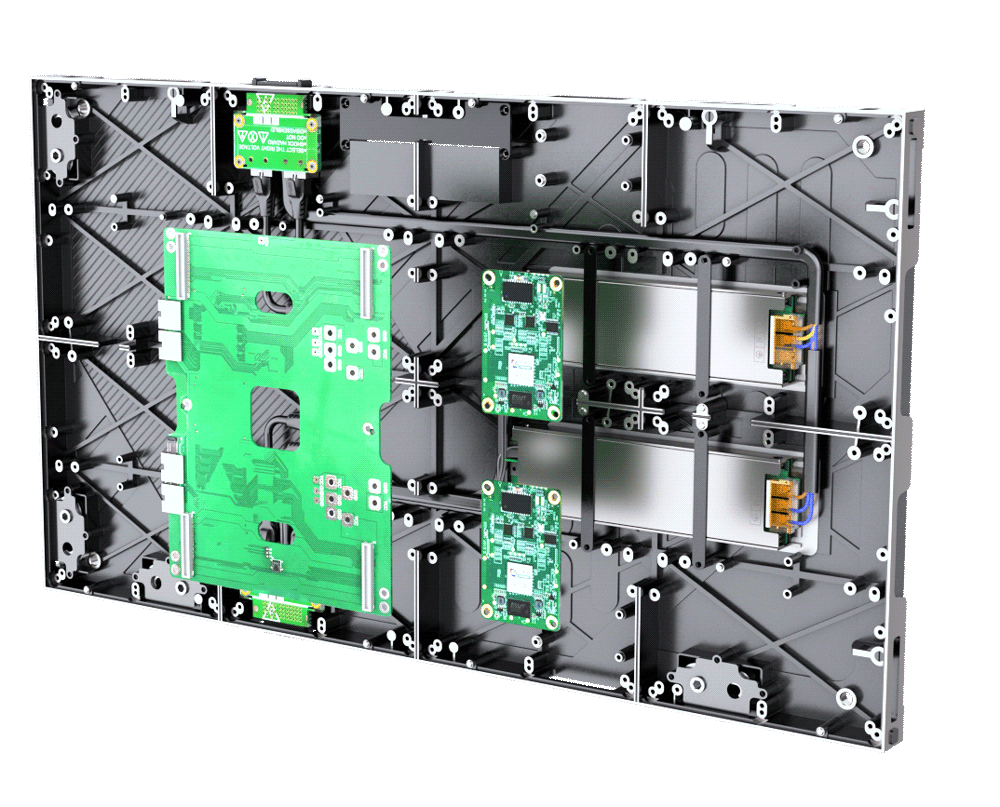

Dual system and power supply
Dual-receiver cards ensure a reliable signal input and continuous online connectivity.Dual power supplies counteract power disturbances,ensuring smooth operation, especially during emergencies.

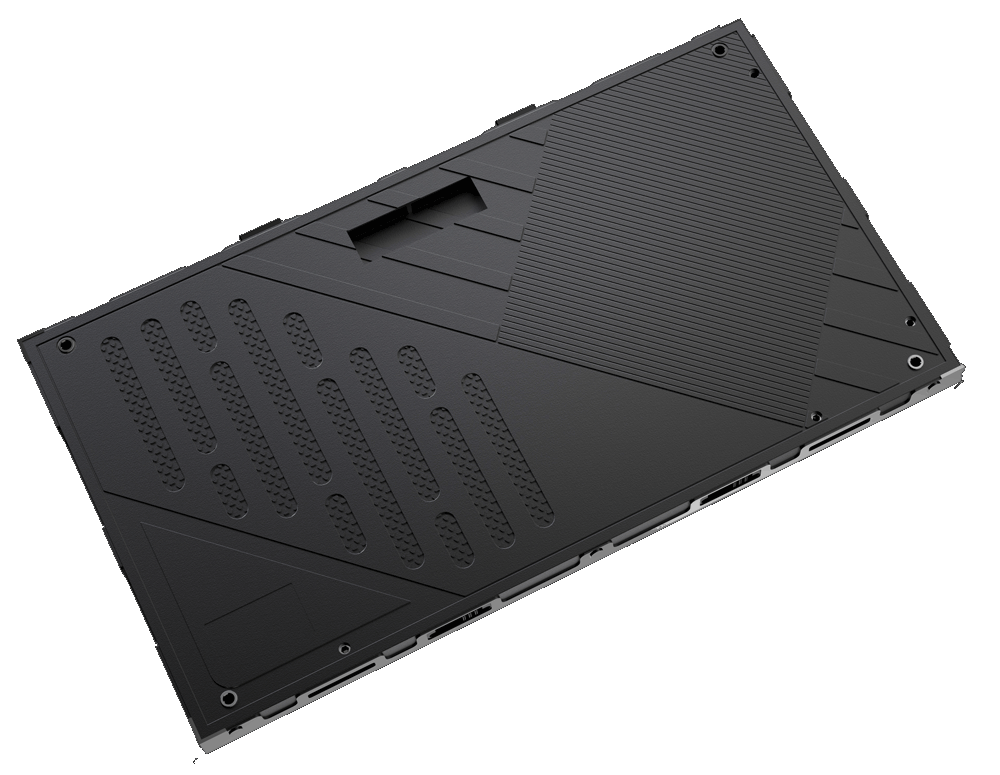

Advanced cabinet design
High heat resistance, exceptional strength, deformation-free performance. Integrated design guarantees stability, arrives pre-assembled for effortless flatness.
Wide color gamut +HDR
High color coverage, precise reproduction of natural colors, making the picture more realistic.
HD Resolution for Brilliant Enjoyment
The Trident series offers diverse pixel pitches for tailored 2K/4K/8K display solutions. Our displays ensure high-definition quality for all viewing distances, from intimate close-ups to wide-angle views.

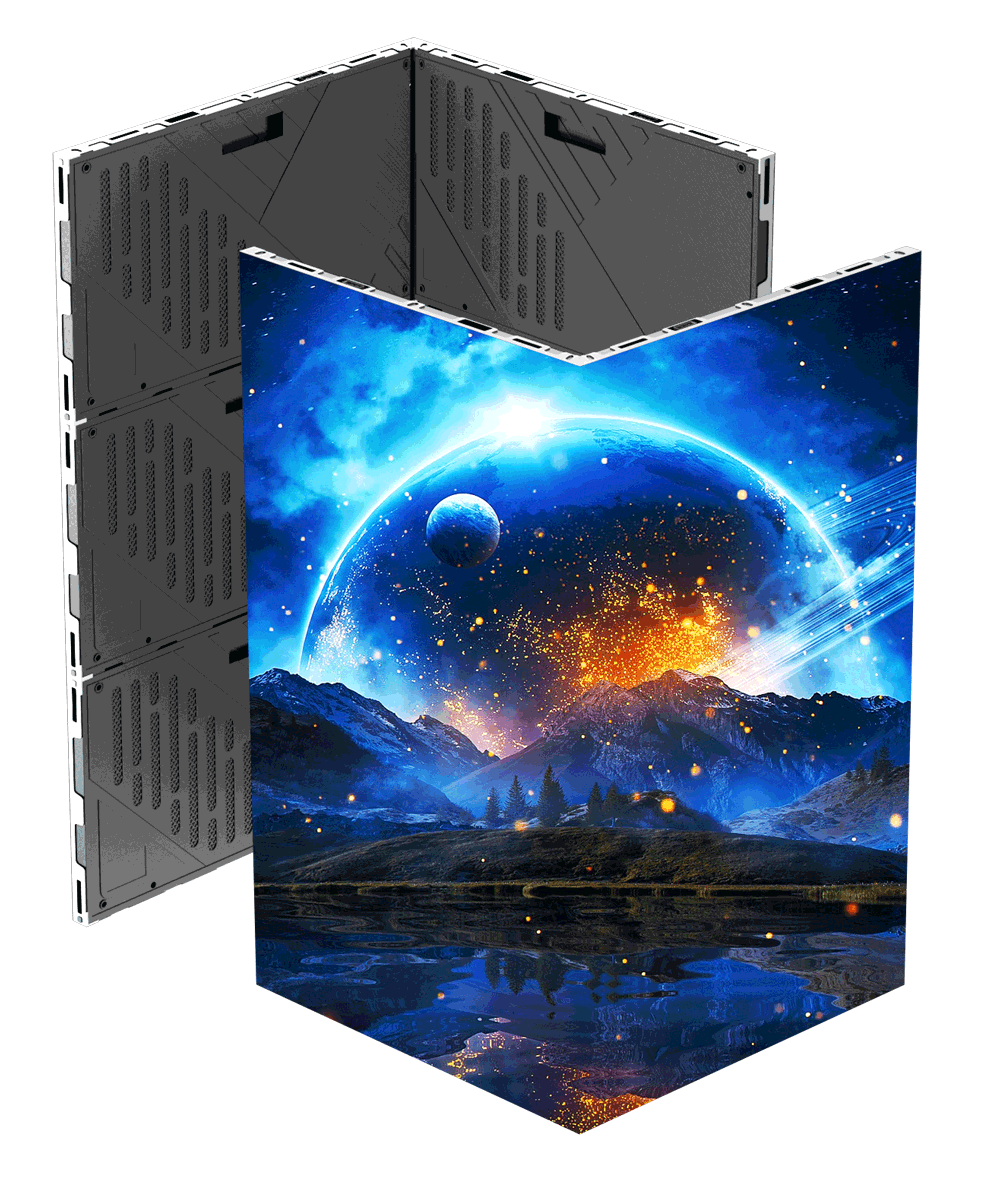

Supporting 90 degree installation
Distinctive L-shaped configuration that brings a remarkable ambiance to your environment, crafting an unforgettable visual journey for viewers.

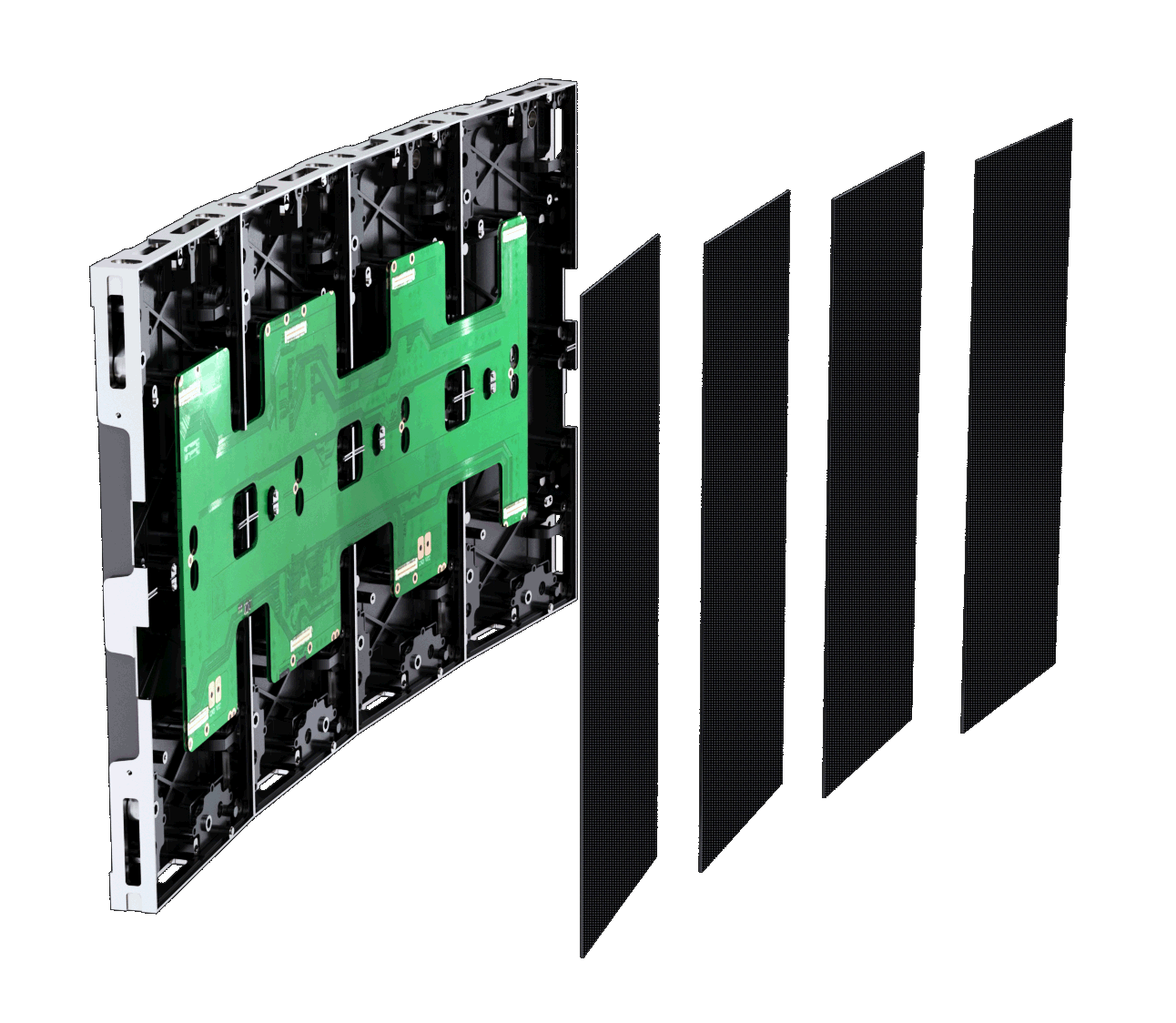

Supporting inner and outer arc splicing, creating various curved shapes
600*337.5 cabinet can perfectly match with 150*337.5 size and create different smooth cureve angle.

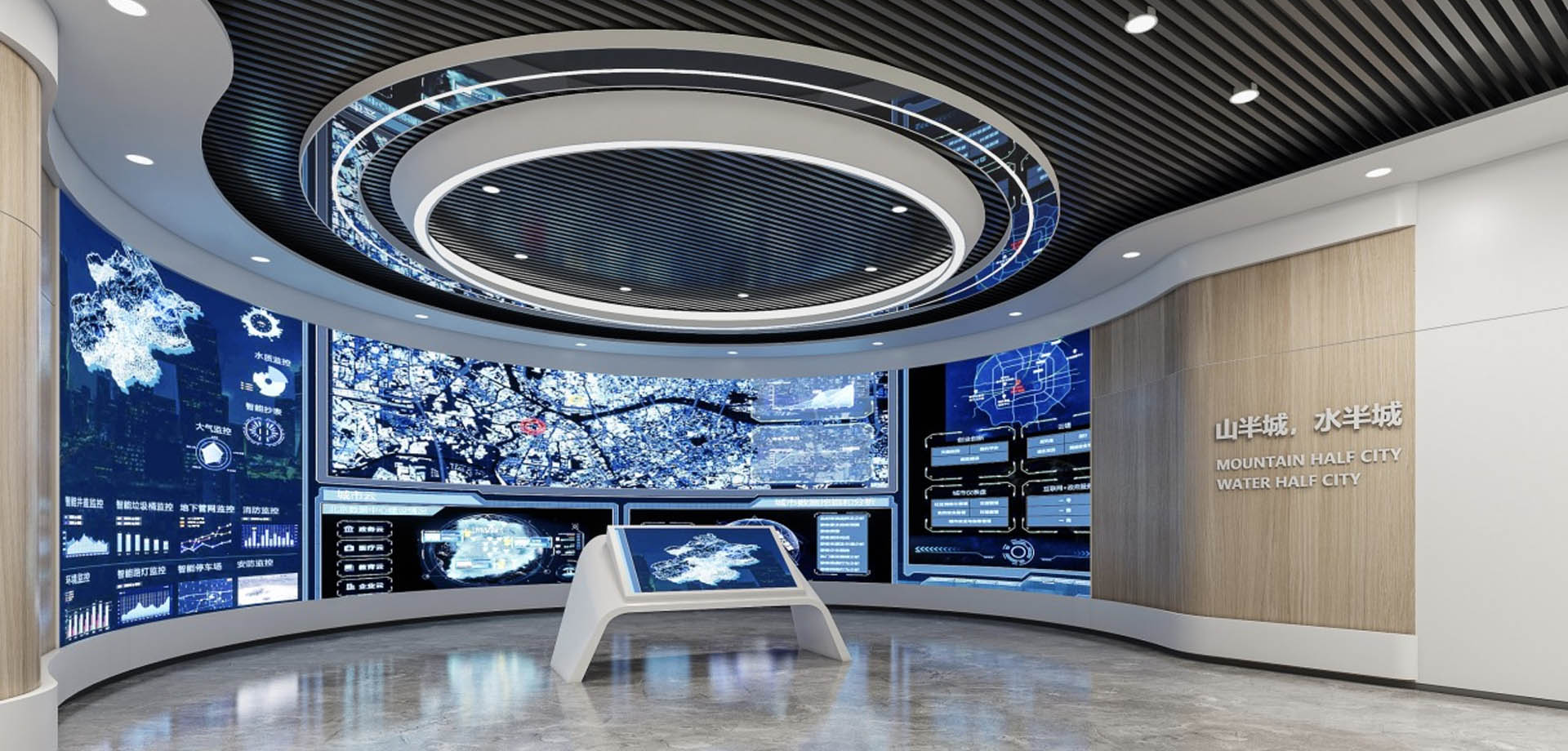

Case study
Application place：conference room、command and control center、monitoring room、technology exhibition hall、museum、shopping center、studio、high-end commercial display and other scenarios.
Specifications
Trident series
P0.78125
P0.9375
P1.25
P1.5625
P1.875
P2.5
Pixel Pitch
LED Type
Physical Density(dot/sqm)
Module Resolution
Module Size(mm)

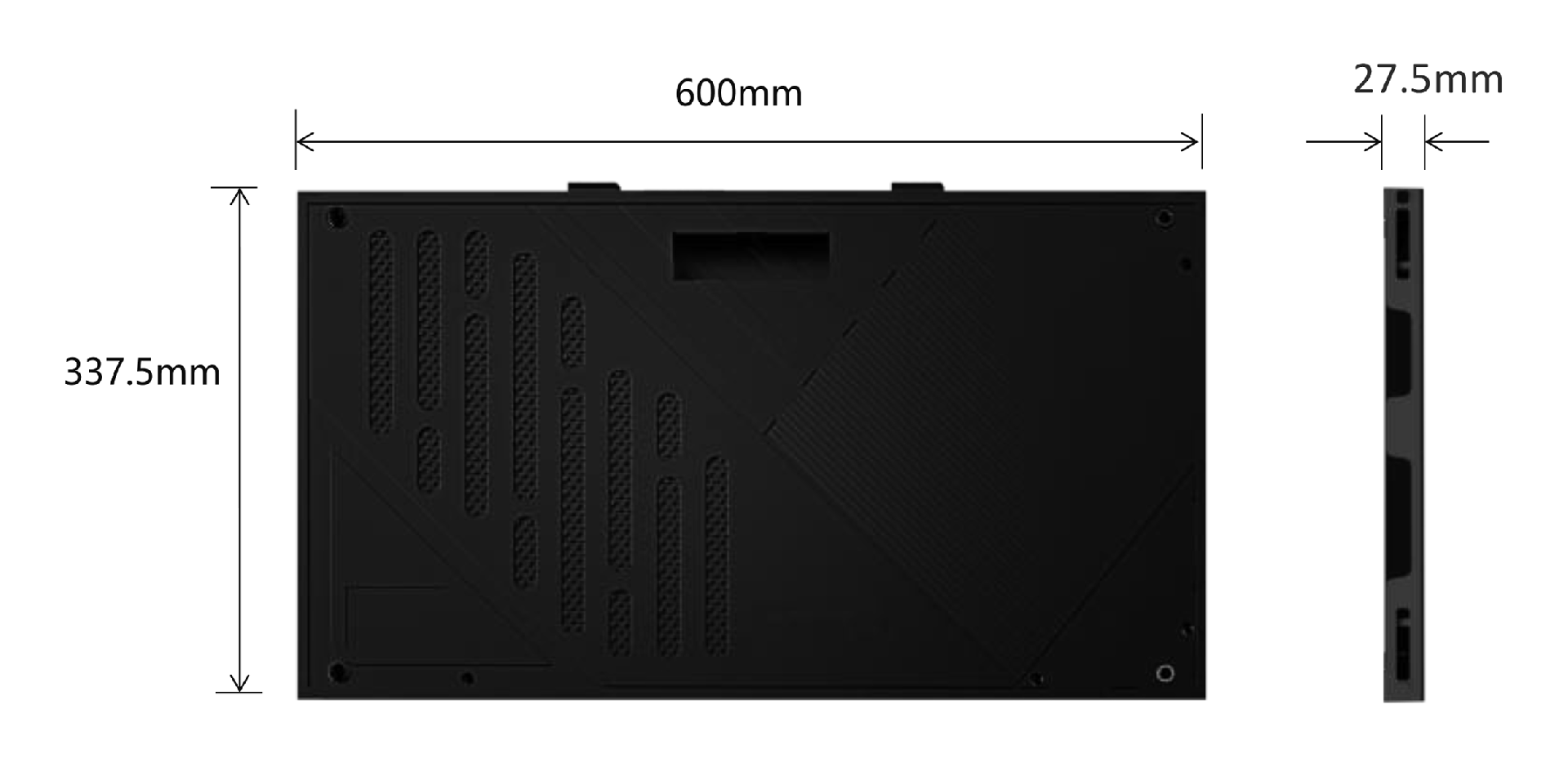

Panel Dimension(wxhxd/mm)
Panel Resolution
Module Qty(wxh)
Panel Weight(kg)
Maintenance Mode
Cabinet Material
Brightness(nits)
Color Temperature(k)
Viewing Angle(v/h)
Brightness/Colorunifo Mmity
Contrast Ratio
Frame Frequency
Grey Level
Refresh Rate(Hz)
Max. Power Consumption(W/sqm)
Avg.Power Consumption(w/sqm)
Protection Level
Working Temperature/humidity(°C/rh)
Storage Temperature/humidity(°C/rh)
Certificatiom
P0.78125
COB
1638400
192X216
150X168.75
600X337.5X27.5
768X432
4X2
4.5
Front main tenance
Die-casting aluminum
≥600
1000-18500 0ptional
170/170°
≥99.8%
10000 :1
50/60
16bit
3840
350
100
IP31
-20-609C/10%-85%
-20-60C/10%6-85%
CCC/CE/ROHS/FCC/CB/TUV/IEC
P0.9375
COB
1137778
160X180
150X168.75
600X337.5X27.5
640X360
4X2
4.5
Front main tenance
Die-casting aluminum
≥600
1000-18500 0ptional
170/170°
≥99.8%
10000 :1
50/60
16bit
3840
350
100
IP31
-20-609C/10%-85%
-20-60C/10%6-85%
CCC/CE/ROHS/FCC/CB/TUV/IEC
P1.25
SMD1010
640000
240X135
300X168.75
600X337.5X27.5
480X270
2X2
4.5
Front main tenance
Die-casting aluminum
≥600
1000-18500 0ptional
170/170°
≥99.8%
10000 :1
50/60
16bit
3840
350
100
IP31
-20-609C/10%-85%
-20-60C/10%6-85%
CCC/CE/ROHS/FCC/CB/TUV/IEC
P1.5625
SMD1010/1212
409600
192X108
300X168.75
600X337.5X27.5
384X216
2X2
4.5
Front main tenance
Die-casting aluminum
≥600
1000-18500 0ptional
170/170°
≥99.8%
10000 :1
50/60
16bit
3840
350
100
IP31
-20-609C/10%-85%
-20-60C/10%6-85%
CCC/CE/ROHS/FCC/CB/TUV/IEC
P1.875
SMD1010/1515
284444
160X90
300X168.75
600X337.5X27.5
320X180
2X2
4.5
Front main tenance
Die-casting aluminum
≥600
1000-18500 0ptional
170/170°
≥99.8%
10000 :1
50/60
16bit
3840
350
100
IP31
-20-609C/10%-85%
-20-60C/10%6-85%
CCC/CE/ROHS/FCC/CB/TUV/IEC
P2.5
SMD1515
160000
60X135
300X337.5
600X337.5X27.5
240X135
2X2
4.5
Front main tenance
Die-casting aluminum
≥600
1000-18500 0ptional
170/170°
≥99.8%
10000 :1
50/60
16bit
3840
350
100
IP31
-20-609C/10%-85%
-20-60C/10%6-85%
CCC/CE/ROHS/FCC/CB/TUV/IEC
