Iris Micro LED

Optimesh Series

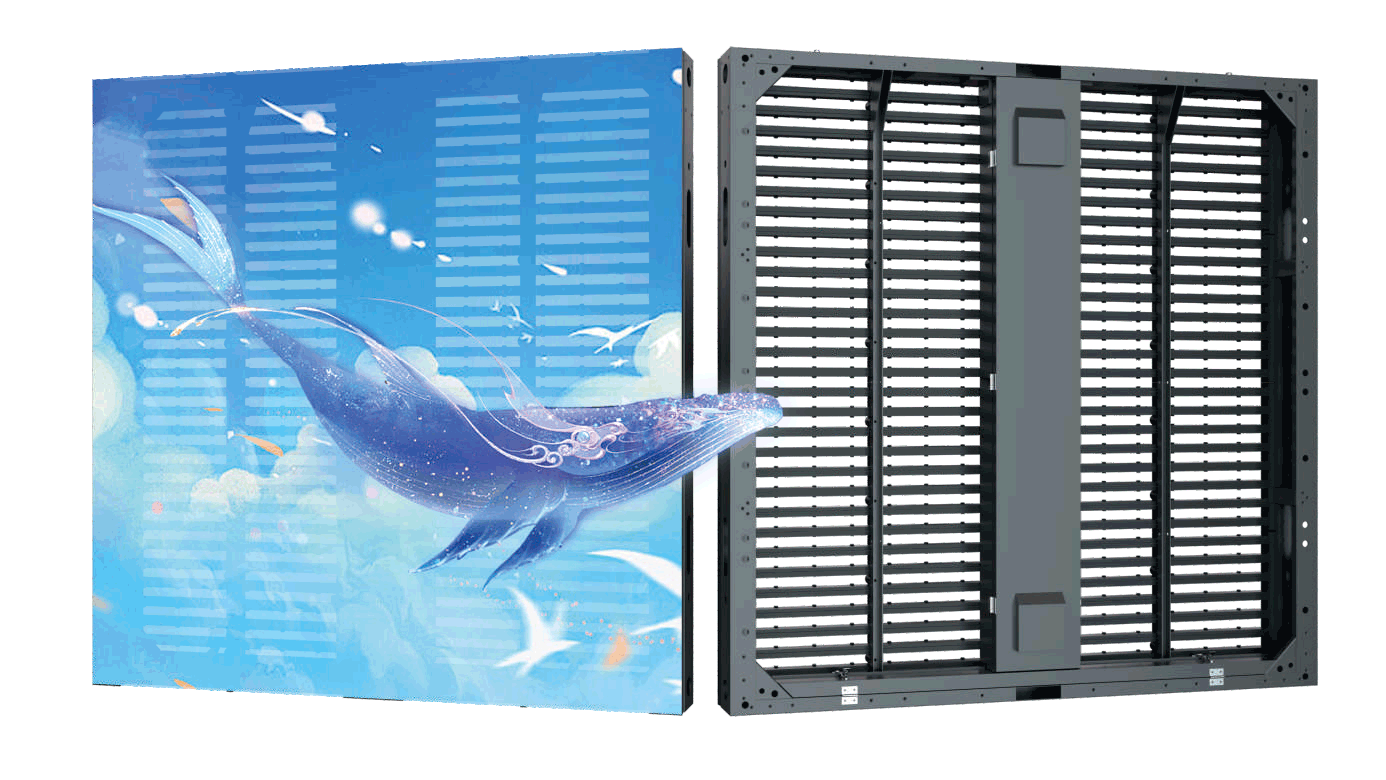

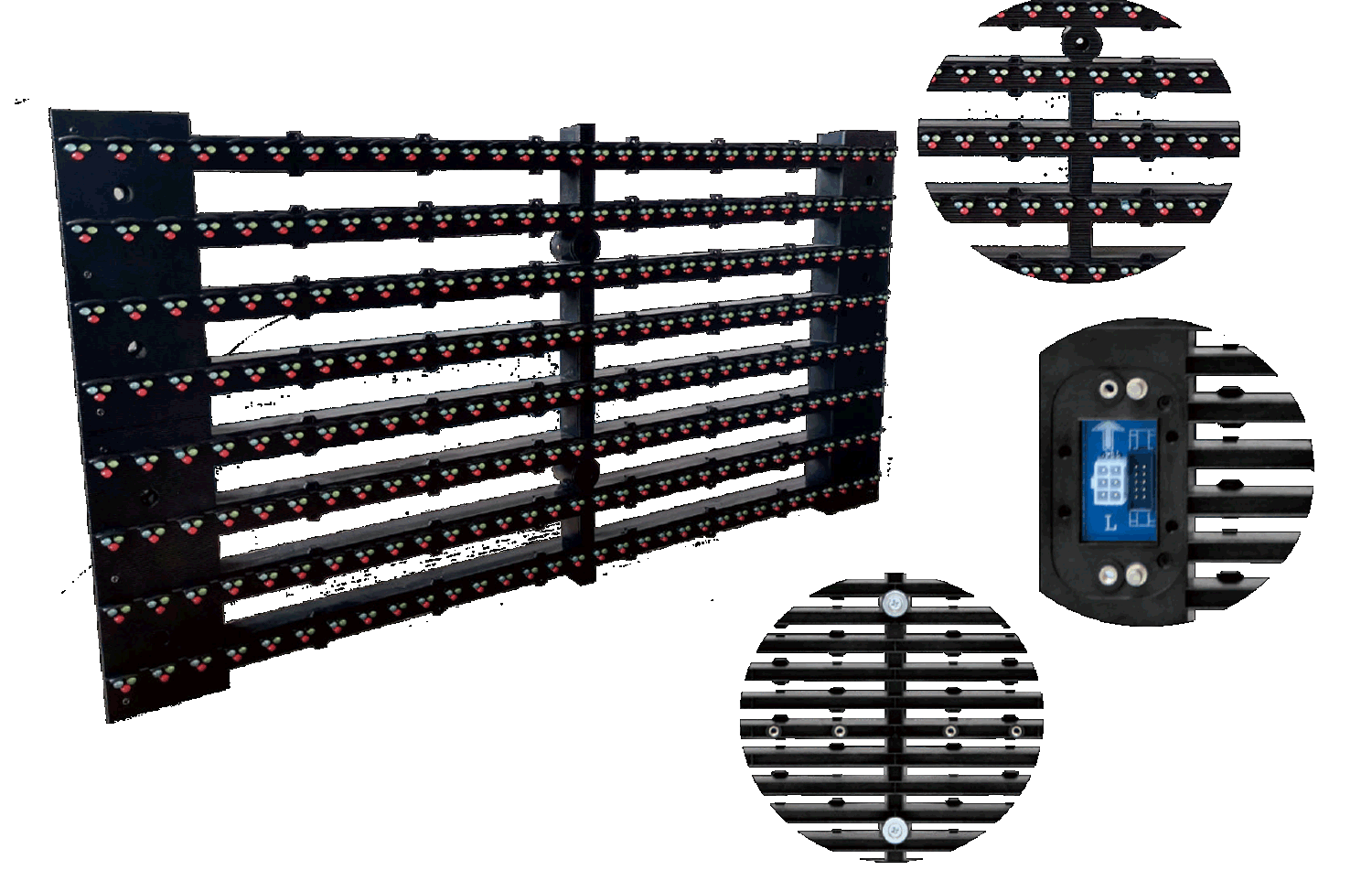

Modular Design Enables Fast Maintenance

The Optimesh Series optimizes setup speed with specially designed large modules that allow for rapid and seamless swaps, simplifying maintenance.

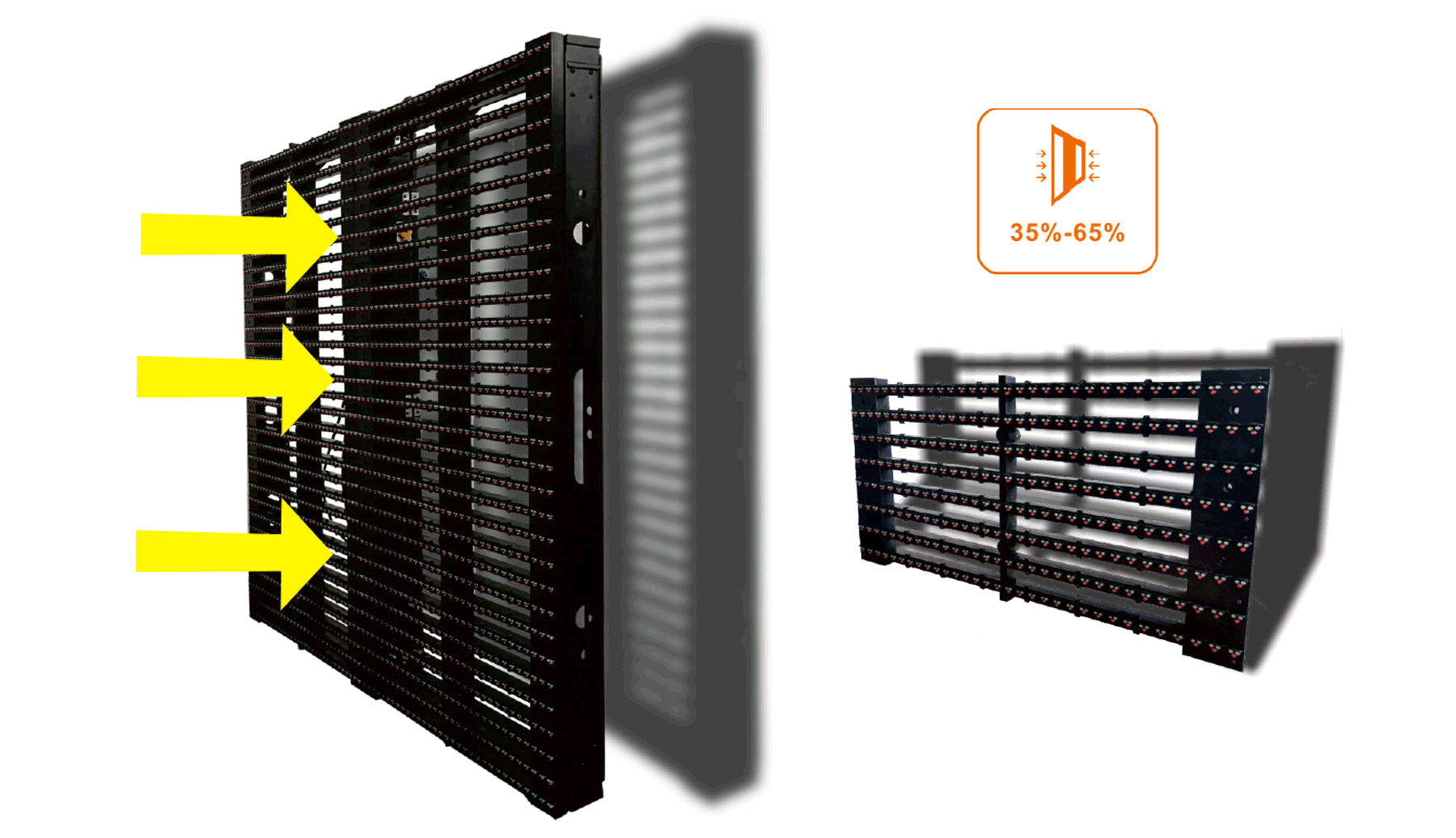

High Transparency: 35%-75%

Buildings behind the screen have better natural lighting. Cabinets are thinner, easy to install.

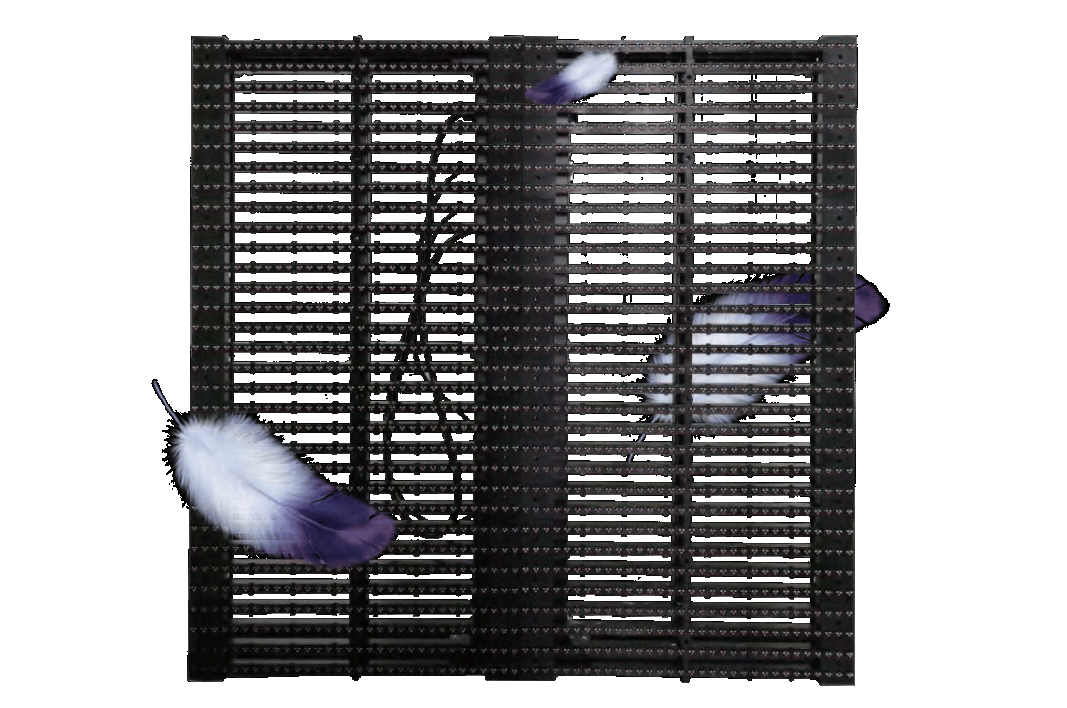

Light Weight and Small Wind Load

For the outdoor LED mesh screen, light weight is our most intuitive experience. The Optimesh Series makes the display screen breathable, and its wind load capacity is very strong.

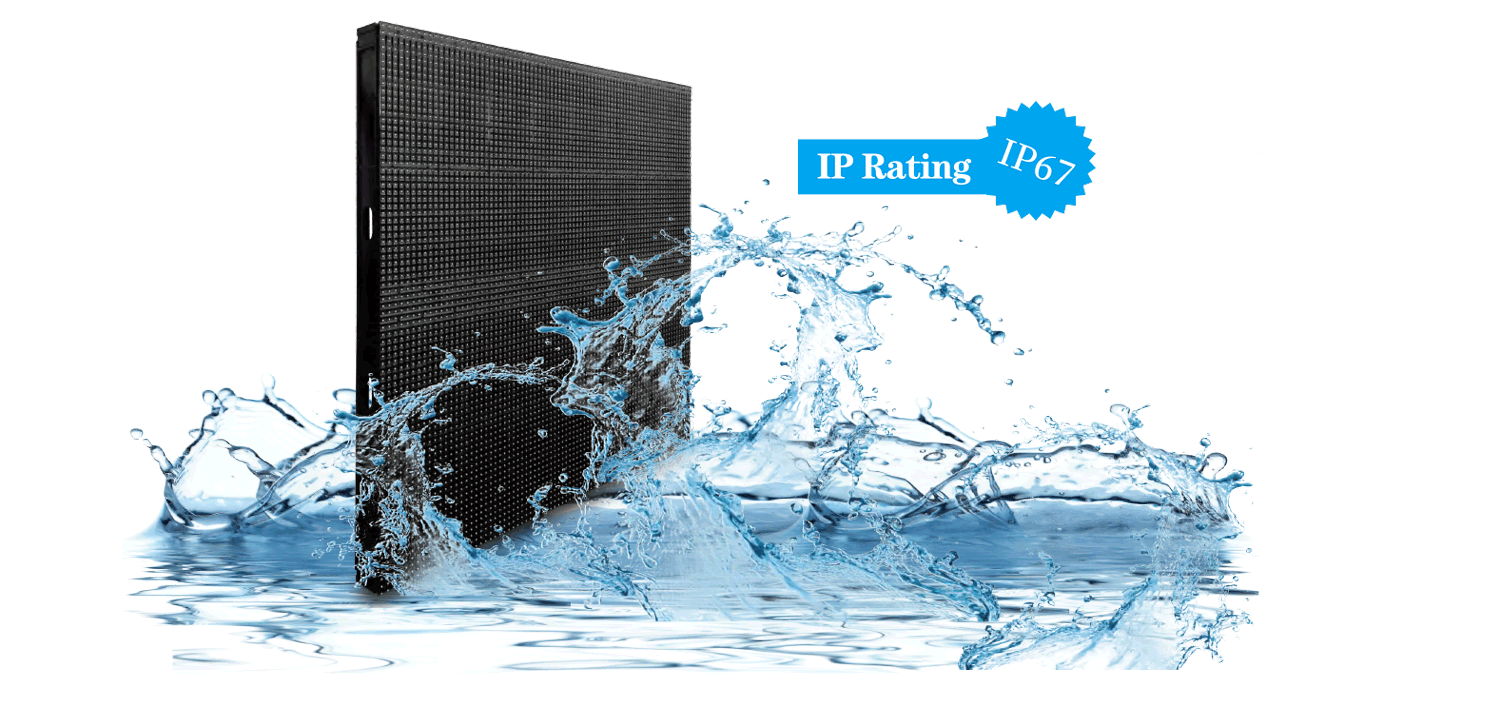

IP67

The Optimesh Series has a high protection level of IP67. The safety and stability of the product are guaranteed.

High Efficiency and Low Power Consumption

Max. Power Consumption: 360w/sqm.

Avg. Power Consumption: 100w/sqm.

The real energy saving comes from: LED lamps with high brightness and high luminous efficiency and power supply with high conversion efficiency.

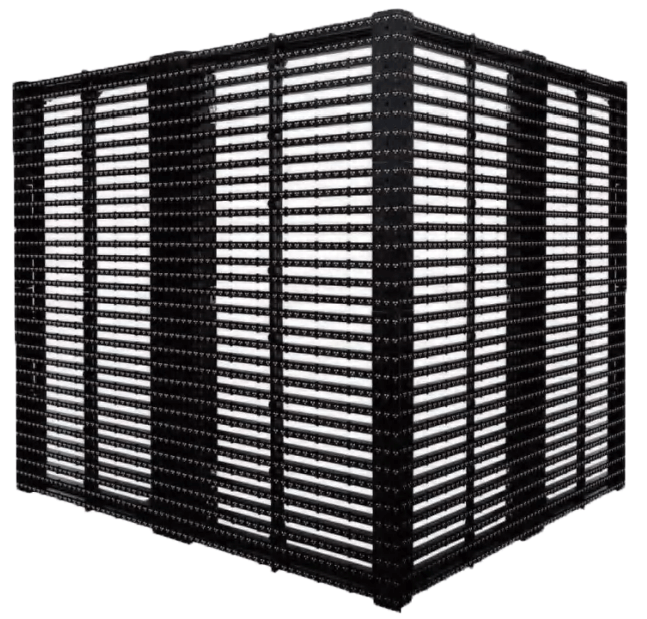

Right-angled Installation

The edges of each module are designed to be 45 degrees,it is easier to make right-angled Installation and realize 3D LED display.

Specifications

Optimesh Series

3.91x7.81mm(H*V)

5.2*10.4mm(H*V)

6.2*12.5mm(H*V)

7.8*15.6mm(H*V)

10.4*10.4mm(H*V)

12.5*12.5mm(H*V)

15.6*15.6mm(H*V)

15.6*31mm(H*V)

Pixel Pitch (mm)
LED Configuration
Module Size (mm)
Module Resolution (dot)

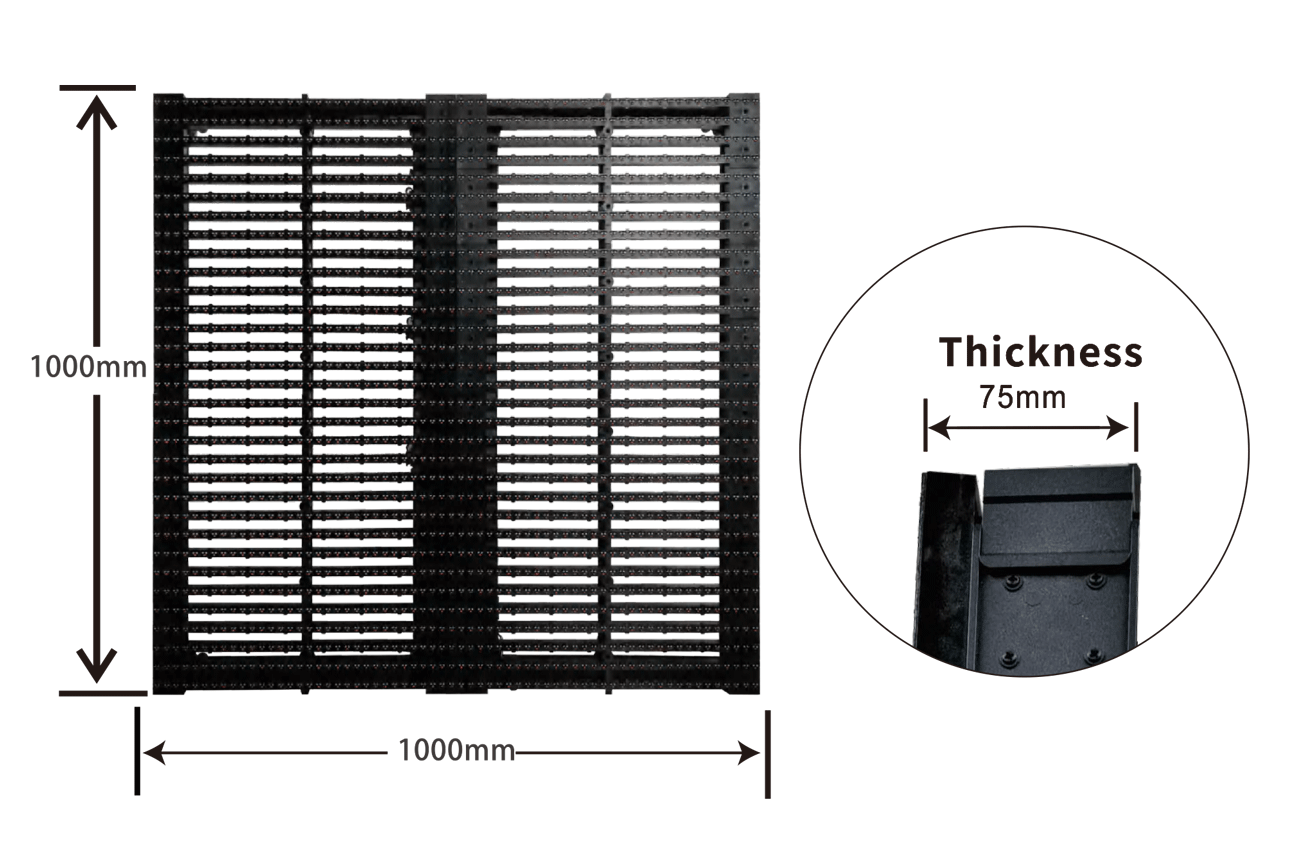

Cabinet Size (mm)
Cabinet Resolution (dot)
Cabinet Weight (kg)
Transparency Rate
Brightness (cd/m²）
Max. Power Consumption
Avg. Power Consumption
Refresh Rate
IP Rating (Front/Rear)
Installation Type
Maintenance Type

3.91x7.81mm(H*V)
SMD1921
500*125
128*16
1000*1000*75
256*128
19
42%
≥8000
800w/m²
230w/m²
3840hz
IP67/IP54
Front/Back
Front/Back

5.2*10.4mm(H*V)
SMD2727
500*125
96*24
1000*1000*75
192*96
19
45%
≥8000
800w/m²
230w/m²
3840hz
IP67/IP54
Front/Back
Front/Back

6.2*12.5mm(H*V)
SMD3535
500*125
80*10
1000*1000*75
160*80
19
35%
≥8000
800w/m²
230w/m²
3840hz
IP67/IP54
Front/Back
Front/Back

7.8*15.6mm(H*V)
SMD3535
500*125
64*16
1000*1000*75
128*64
19
50%
≥8000
800w/m²
230w/m²
3840hz
IP67/IP54
Front/Back
Front/Back

10.4*10.4mm(H*V)
SMD2727
500*125
48*12
1000*1000*75
96*96
19
45%
≥8000
800w/m²
230w/m²
3840hz
IP67/IP54
Front/Back
Front/Back

12.5*12.5mm(H*V)
SMD3535
500*125
40*10
1000*1000*75
80*80
19
35%
≥8000
800w/m²
230w/m²
3840hz
IP67/IP54
Front/Back
Front/Back

15.6*15.6mm(H*V)
SMD3535
500*250
32*16
1000*1000*75
32*16
19
50%
≥8000
800w/m²
230w/m²
3840hz
IP67/IP54
Front/Back
Front/Back

15.6*31mm(H*V)
DIP346
500*250
32*8
1000*1000*85
64*32
19
75%
≥10000
360w/m2
100w/m2
3840hz
IP67/IP54
Front/Back
Front/Back
